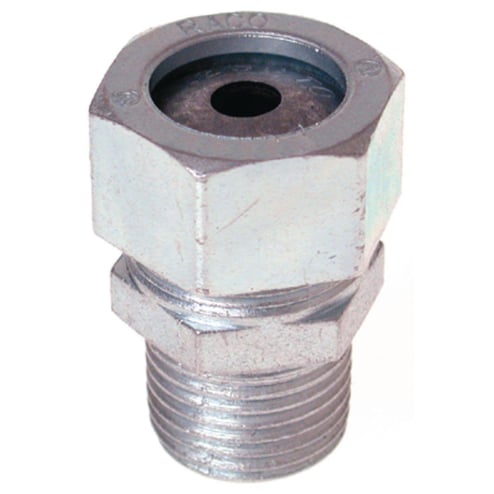

RACO® 3703-3 Form 3 Strain Relief Straight Cord Connector, 3/4 in Trade, 0.5 to 0.6 in Cable Openings, Steel, Electro-Plated Zinc
RACO® 3703-3 Form 3 Strain Relief Straight Cord Connector, 3/4 in Trade, 0.5 to 0.6 in Cable Openings, Steel, Electro-Plated Zinc
MPN 3703-3
ASPN RACO37033
UPC 50169370339
Description
Features
- All steel/malleable construction provides mechanical strength
- Unique neoprene grommet design - grommet is forced up and around the cord when the nut is tightened for a positive liquidtight seal
- Washers have cable size range imprinted for identification - eliminates misidentifying inventory
- Use RACO® locknuts and sealing washers to complete a liquid tight installation on a sheet metal box or panel
- All metallic components are zinc electro plated for added corrosion protection
- UPC bar coded fittings are individually polybagged with a preprinted UPC-A bar code and packaged in pre-scored tear top cartons for an attractive presentation
- RACO® liquidtight strain relief cord connectors are suitable for use in class I, division 2, class II, division 1, 2 and class III, division 1, 2 hazardous locations
- 9/16 in L thread
- 3/8 in to 1 in Steel, 1-1/4 in to 1-1/2 in Malleable Iron bodies and nuts
- Additional sizes available
Specifications
GTIN: 00050169370339
UNSPSC: 39121431
Country of Origin: China
| Color | Silver |
|---|---|
| Weight | 16.8 lbs |
| Cable Openings | 0.5 to 0.6 in |
| Trade Size | 3/4 in |
| Dimensions | 1-31/64 in L x 1-13/32 in W |
| Connection Type | NPT |
| Material | Steel |
| Finish | Electro-Plated Zinc |
| BABA Compliant | No |
| Type | Form 3 Strain Relief Straight |
| Sold as | EACH |
