Pramet 6834720 Turning Insert, ANSI Code: VNMG 331-NF T9325, VNMG Insert, Material Grade: K, M, P, S, 331 Insert, Diamond Shape, 16 Seat, Negative Rake, For Use On Cast Iron, Stainless Steel, Steel and TitaniumSuper Alloys, Carbide
Pramet 6834720 Turning Insert, ANSI Code: VNMG 331-NF T9325, VNMG Insert, Material Grade: K, M, P, S, 331 Insert, Diamond Shape, 16 Seat, Negative Rake, For Use On Cast Iron, Stainless Steel, Steel and TitaniumSuper Alloys, Carbide
MPN 6834720
ASPN PTD6834720
Description
Features
- T9325 grade functionally gradient substrate
- Relatively low content of cobalt binder phase
- Thick MT-CVD coating
- Highly versatile material with very good operational reliability
- Special surface finish for coating
- Medium and higher cutting speed
- Continuous and interrupted cut
- Unfavorable cutting conditions, continuous and/or interrupted cuts
- Cutting geometry suitable for grooving and axial turning
- Suitable for turning, with an indexing accuracy to ISO tolerance class-M and chipbreakers on both sides

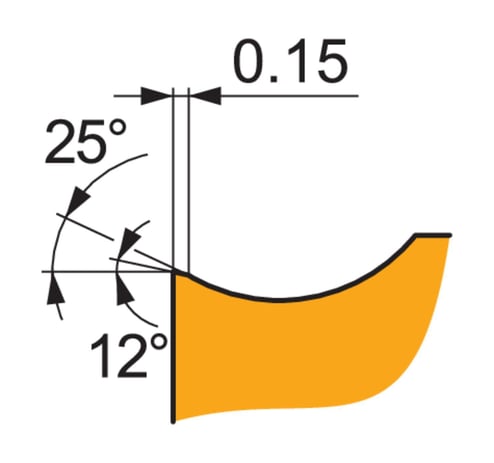

- NF chipbreaker - sharp and positive chipbreaker specially designed for stainless steel
- Excellent chip formation ability
- Low cutting forces increase suitability in unstable machine set-ups
- High productivity
- High durability and reliability as a result of combination materials
Specifications
UNSPSC: 23242107
Alternative Part Number: VNMG 331-NF:T9325
Country of Origin: Czechia
| Material | Carbide |
|---|---|
| BABA Compliant | No |
| For Use On | Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys |
| ANSI Code | VNMG 331-NF T9325 |
| ISO Code | VNMG 160404E-NF T9325 |
| Material Grade | K, M, P, S |
| Hole Diameter | 3.81 mm |
| Included Angle | 35 deg |
| Maximum Depth of Cut | 2.5 mm |
| Shape | Diamond |
| Manufacturer's Grade | T9325 |
| Rake | Negative |
| Thickness | 4.76 mm |
| Insert Style | VNMG |
| Corner Radius | 0.4 mm |
| Insert Size | 331 |
| Relief Angle | 0 deg |
| Chipbreaker | NF |
| Finish | CVD Coated |
| Inscribed Circle | 9.525 mm |
| Seat Size | 16 |
| Manufacturer-s-Grade | T9325 |
| Sold as | 10/PK |
