Description

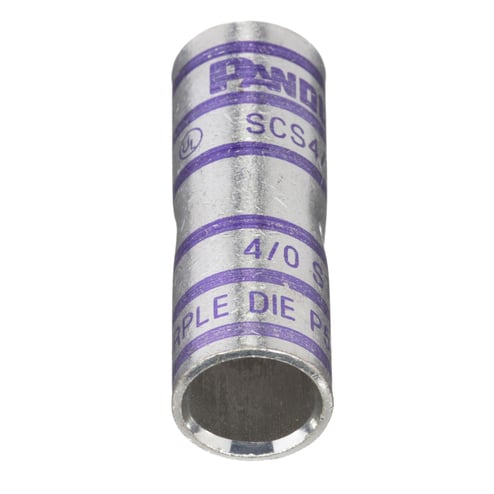

Panduit® Pan-Lug™ Compression Butt Splice, Series: SCS, Stranded Copper Conductor, 4/0 AWG Conductor, 2.12 in Length, Standard Barrel, 0.57 in ID x 0.71 in OD Barrel, 35 kV, Specifications: 1 in L Wire Strip, 90 deg C, Copper, Purple, Electro TiN Coated
Panduit® Pan-Term® splices are designed and manufactured for fast assembly and long reliable performance. As the demand for splices increases, it becomes essential to provide a complete system for termination products. We provide an extensive line of tooling designed specifically to provide optimum performance when used as a system for terminating.
Features
- Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
- Internal solid center prevents over-insertion of conductor
- Tin-plated to inhibit corrosion
Specifications
GTIN: 00074983903405
UNSPSC: 39121449
Country of Origin: Mexico
| Barrel Size | 0.57 in ID x 0.71 in OD |
|---|---|
| Color | Purple |
| Conductor Type | Stranded Copper |
| Barrel Type | Standard |
| Voltage Rating | 35 kV |
| Weight | 44.5 lbs |
| Specifications | 1 in L Wire Strip |
| Conductor Size | 4/0 AWG |
| Length | 2.12 in |
| Series | SCS |
| Material | Copper |
| Temperature Rating | 90 deg C |
| BABA Compliant | No |
| Finish | Electro TiN Coated |
| Sold as |
