Description

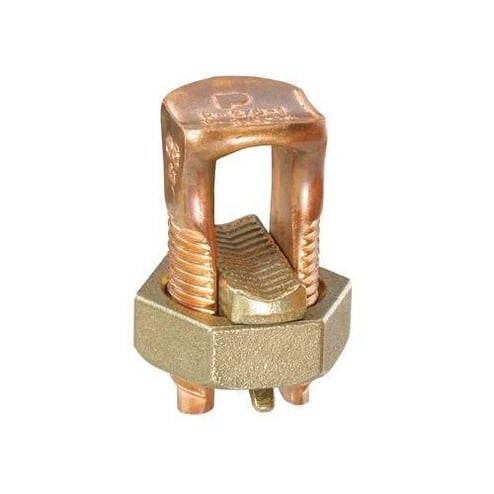

Panduit® Pan-Lug™ Split-Bolt Connector, Dual Rated, Series: SBC, Stranded Copper Conductor, 300 to 500 kcmil Conductor, 600 VAC, Specifications: 1.74 in Hex Nut, 2/0 AWG Stranded Minimum Tap With One Maximum Run, 825 in-lb Tightening Torque, 90 deg C, Copper, Tin Plated, 0.81 in ID x 2.83 in L x 1.33 in W Dimensions
Panduit® offers a broad variety of split bolt connectors suitable for a wide range of electrical terminations using code conductor. Designed to be reusable and installed without special tooling.
Features
- Made from high strength copper alloy to resist corrosion and provide premium electrical and mechanical performance
- Wide wire range-taking capability minimizes inventory requirements
- Nut hex provides correct fit with socket, box or open end wrenches resulting in proper torquing of electrical connection
- Tin-plated to inhibit corrosion and oxidation
- Dual-rated for use with aluminum to aluminum, aluminum to copper and copper to copper conductor combinations
- Free floating pressure bar separates conductors of dissimilar materials for secure connection on a full range of conductor combinations
- Copper to copper connection
- True hex design for body and nut hex provides correct fit with socket, box or open-end wrenches resulting in proper torquing of electrical connection
- Pressure bar provides secure connection on a full range of conductor combinations used with each connector assuring premium wire pull-out strength
Specifications
GTIN: 00074983904129
UNSPSC: 39121408
Country of Origin: Mexico
| Conductor Type | Stranded Copper |
|---|---|
| Voltage Rating | 600 VAC |
| Weight | 0.1 lbs |
| Dimensions | 0.81 in ID x 2.83 in L x 1.33 in W |
| Series | SBC |
| Material | Copper |
| Finish | Tin Plated |
| Temperature Rating | 90 deg C |
| BABA Compliant | No |
| Type | Dual Rated |
| Conductor Size | 300 to 500 kcmil |
| Specifications | 1.74 in Hex Nut, 2/0 AWG Stranded Minimum Tap With One Maximum Run, 825 in-lb Tightening Torque |
| Sold as |
