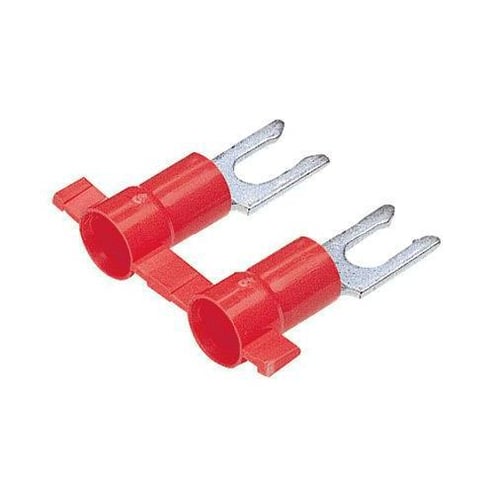

Panduit® Pan-Term® Reel Smart™ PV18-8LFB-3K Type PV-LFB Reel-Fed Fork Terminal, 22 to 18 AWG Conductor, 0.87 in L, Butted Seam/Funnel Entry/Internal Serration Barrel, Copper, Red
Panduit® Pan-Term® Reel Smart™ PV18-8LFB-3K Type PV-LFB Reel-Fed Fork Terminal, 22 to 18 AWG Conductor, 0.87 in L, Butted Seam/Funnel Entry/Internal Serration Barrel, Copper, Red
MPN PV18-8LFB-3K
ASPN PANDPV188LFB3K
UPC 74983808434
Description
Features
- Fork design provides for fast and easy installation, without the need to remove fastener
- Insulation support helps to prevent wire damage in bending application
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Plastic insulation crimp
- The continuously molded design allows for consistent and reliable processing through Panduit® applicators
Specifications
GTIN: 00074983808434
UNSPSC: 39121409
Country of Origin: Mexico
| Type | Type PV-LFB Reel-Fed |
|---|---|
| Color | Red |
| Tongue Type | Locking Fork |
| Conductor Type | Stranded Copper |
| Barrel Type | Butted Seam/Funnel Entry/Internal Serration |
| Voltage Rating | 600 V |
| Specifications | 0.15 in Dia Vinyl Insulation, 0.23 in Clearance, 1/4 in Mounting Hole Size, 1/4 in L Wire Strip, 1/4 in Mounting Hole Size, Fork Shape Enclosure |
| Stud Size | #8 |
| Conductor Size | 22 to 18 AWG |
| Tongue Size | 0.29 in W x 0.03 in THK |
| Length | 0.87 in |
| Material | Copper |
| Finish | Tin Plated |
| Temperature Rating | 221 deg F |
| BABA Compliant | No |
| Sold as |
