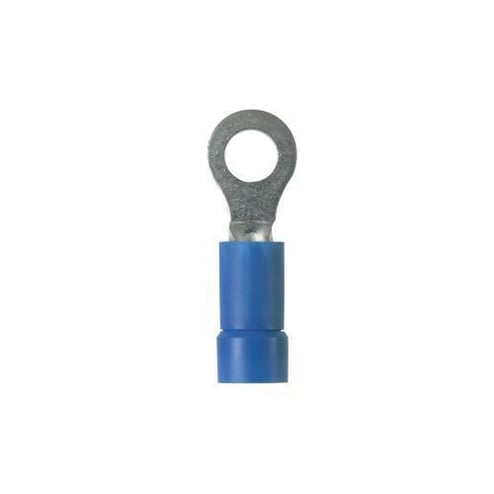

Panduit Pan-Term PV14-4R-C Type PV-R Loose Piece Ring Terminal, 14 AWG Conductor, 0.84 in L, Brazed Seam/Funnel Entry/Insulation Support/Internal Serration Barrel, Copper, Blue
Panduit Pan-Term PV14-4R-C Type PV-R Loose Piece Ring Terminal, 14 AWG Conductor, 0.84 in L, Brazed Seam/Funnel Entry/Insulation Support/Internal Serration Barrel, Copper, Blue
MPN PV14-4R-C
ASPN PANDPV144RC
UPC 74983801145
Description
Features
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
Specifications
GTIN: 00074983801145
UNSPSC: 39121409
Country of Origin: Mexico
| Color | Blue |
|---|---|
| Tongue Type | Ring |
| Conductor Type | Solid/Stranded |
| Barrel Type | Brazed Seam/Funnel Entry/Insulation Support/Internal Serration |
| Voltage Rating | 600 VAC |
| Weight | 0 |
| Stud Size | #4 |
| Conductor Size | 16 to 14 AWG |
| Material | Copper |
| Finish | Tin Plated |
| Temperature Rating | 221 deg F |
| BABA Compliant | No |
| Length | 0.84 in |
| Tongue Size | 0.25 in W x 0.03 in THK |
| Specifications | 0.17 in Dia Vinyl Insulation, 0.19 in Clearance, 0.31 in Mounting Hole Size, 5/16 in L Wire Strip, Ring Shape Enclosure |
| Type | Type PV-R Loose Piece |
| Sold as |
