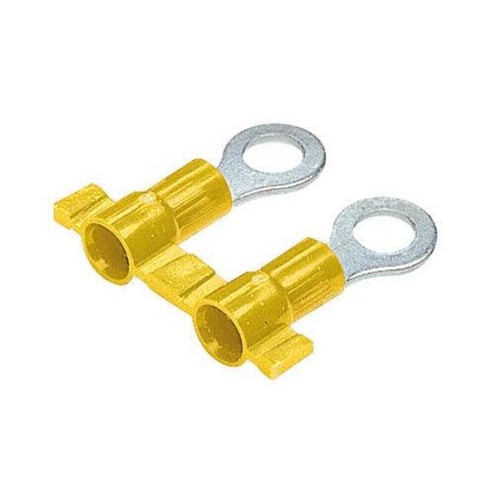

Panduit Reel Smart PV10-38RB-2K Type PV-RB Reel Ring Terminal, 10 AWG Conductor, 1.23 in L, Brazed Seam/Insulation Support/Funnel Entry/Internal Serration Barrel, Copper, Yellow
Panduit Reel Smart PV10-38RB-2K Type PV-RB Reel Ring Terminal, 10 AWG Conductor, 1.23 in L, Brazed Seam/Insulation Support/Funnel Entry/Internal Serration Barrel, Copper, Yellow
MPN PV10-38RB-2K
ASPN PANDPV1038RB2K
UPC 74983803644
Description
Features
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
Specifications
GTIN: 00074983803644
UNSPSC: 39121409
Country of Origin: Mexico
| Type | Type PV-RB Reel |
|---|---|
| Color | Yellow |
| Tongue Type | Ring |
| Conductor Type | Solid/Stranded |
| Barrel Type | Brazed Seam/Funnel Entry/Insulation Support/Internal Serration |
| Voltage Rating | 600 V |
| Specifications | 0.225 in Dia Vinyl Insulation, 11/32 in Mounting Hole Size, 0.38 in Clearance, 11/32 in L Wire Strip, Ring Shape Enclosure |
| Stud Size | 3/8 in |
| Conductor Size | 10 AWG |
| Tongue Size | 0.58 in W x 0.03 in THK |
| Length | 1.23 in |
| Material | Copper |
| Finish | Tin Plated |
| Temperature Rating | 221 deg F |
| BABA Compliant | No |
| Sold as |
