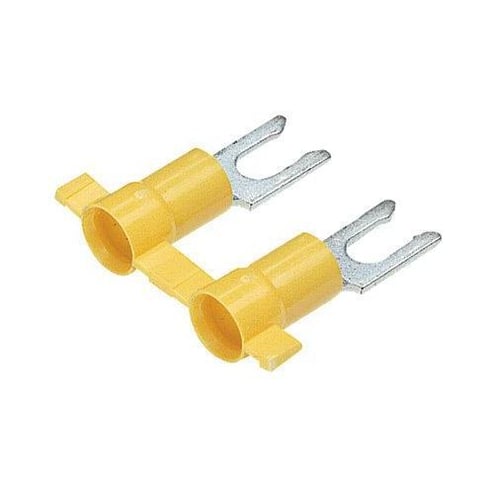

Panduit® Pan-Term® Reel Smart™ PV10-10LFB-2K Reel-Fed Fork Terminal, #10 Conductor, 1.04 in L, Butted Seam/Funnel Entry Barrel, Copper, Yellow
Panduit® Pan-Term® Reel Smart™ PV10-10LFB-2K Reel-Fed Fork Terminal, #10 Conductor, 1.04 in L, Butted Seam/Funnel Entry Barrel, Copper, Yellow
MPN PV10-10LFB-2K
ASPN PANDPV1010LFB2K
UPC 74983808519
Description
Features
- Fork design provides for fast and easy installation, without the need to remove fastener
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Locks in place for secure connection
- Flange design provides extra secure connection on a variety of applications
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
Specifications
GTIN: 00074983808519
UNSPSC: 39121409
| Type | Reel-Fed |
|---|---|
| Color | Yellow |
| Tongue Type | Locking Fork |
| Conductor Type | Copper Stranded |
| Barrel Type | Butted Seam/Funnel Entry |
| Voltage Rating | 600 V |
| Specifications | 11/32 in L Wire Strip, 0.225 in Dia Vinyl Insulation, 0.21 in Clearance, Fork Shape Enclosure |
| Stud Size | #10 |
| Conductor Size | #10 |
| Tongue Size | 0.34 in W x 0.04 in THK |
| Length | 1.04 in |
| Material | Copper |
| Finish | Tin Plated |
| Temperature Rating | 221 deg F |
| BABA Compliant | No |
| Series | PV-LFB |
| Sold as |
