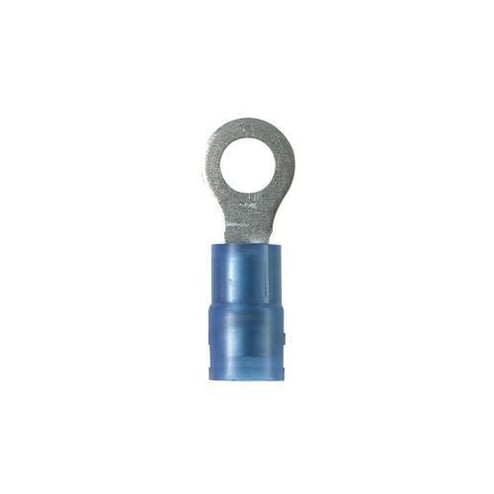

Panduit® Pan-Term™ PNF14-56R-M Type PNF-R Ring Terminal, 14 AWG Conductor, 1.06 in L, Funnel Entry/Insulation Grip Sleeve Barrel, Copper, Blue
Panduit® Pan-Term™ PNF14-56R-M Type PNF-R Ring Terminal, 14 AWG Conductor, 1.06 in L, Funnel Entry/Insulation Grip Sleeve Barrel, Copper, Blue
MPN PNF14-56R-M
ASPN PANDPNF1456RM
UPC 74983810536
Description
Features
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Insulation support helps to prevent wire damage in bending applications
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Brazed seam protects terminal barrel from splitting during the crimp process
Specifications
GTIN: 00074983810536
UNSPSC: 39121409
Alternative Part Number: 7458186
Country of Origin: Mexico
| Voltage Rating | 600 V |
|---|---|
| Material | Copper |
| Finish | Tin Plated |
| Temperature Rating | 221 deg F |
| BABA Compliant | No |
| Length | 1.06 in |
| Tongue Size | 0.46 in W x 0.03 in THK |
| Conductor Size | 14 AWG |
| Barrel Type | Funnel Entry/Insulation Grip Sleeve |
| Conductor Type | Solid/Stranded |
| Tongue Type | Ring |
| Color | Blue |
| Type | Type PNF-R |
| Stud Size | 5/16 in |
| Specifications | 0.162 in Dia Nylon Insulation, 0.21 in Mounting Hole Size, 0.4 in Clearance, 7/32 in L Wire Strip, Ring Shape Enclosure |
| Sold as |
