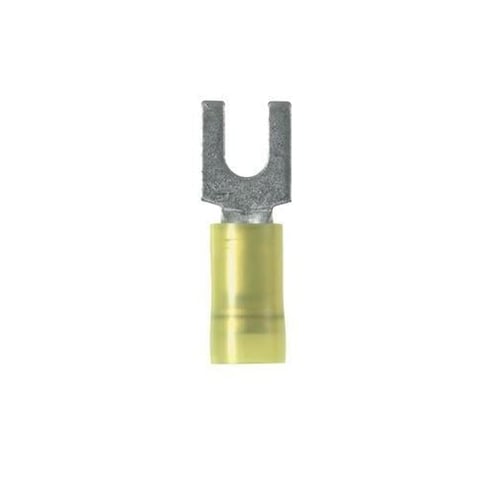

Panduit® Pan-Term® PNF10-6F-L Loose Piece Fork Terminal, #10 Conductor, 1.01 in L, Funnel Entry/Sleeved Barrel, Copper, Yellow


Description

Panduit® Pan-Term® Fork Terminal, Loose Piece, Series: PNF-F, Copper Stranded Conductor, #10 Conductor, #6 Stud, 1.01 in Length, Funnel Entry/Sleeved Barrel, Fork Tongue, 0.31 in W x 0.04 in THK Tongue, 600 V, Specifications: 9/32 in L Wire Strip, 0.225 in Dia Nylon Insulation, 0.24 in Clearance, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Yellow

Panduit® Pan-Term® terminals are designed and manufactured for fast assembly and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.

Features

  • Fork design provides for fast and easy installation, without the need to remove fastener
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Insulation support helps to prevent wire damage in bending applications
  • Brazed seam protects terminal barrel from splitting during the crimp process
  • Flange design provides extra secure connection on a variety of applications
  • Non-expanded insulation

Specifications

GTIN: 00074983513543

UNSPSC: 39121409

Type
Loose Piece
Color
Yellow
Tongue Type
Fork
Conductor Type
Copper Stranded
Barrel Type
Funnel Entry/Sleeved
Voltage Rating
600 V
Specifications
9/32 in L Wire Strip, 0.225 in Dia Nylon Insulation, 0.24 in Clearance, Fork Shape Enclosure
Stud Size
#6
Conductor Size
#10
Tongue Size
0.31 in W x 0.04 in THK
Length
1.01 in
Material
Copper
Finish
Tin Plated
Temperature Rating
221 deg F
BABA Compliant
No
Series
PNF-F
Sold as
