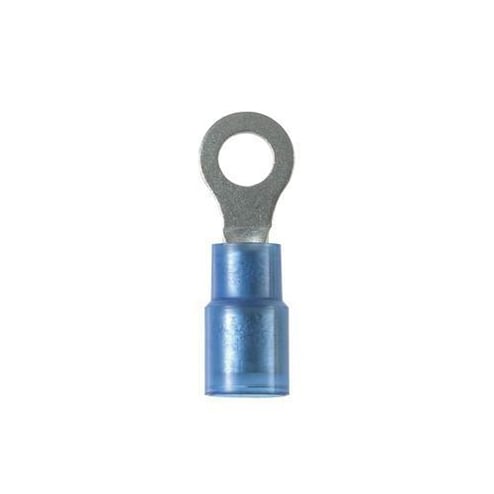

Panduit® Pan-Term™ PN14-6RX-C Type PN-RX Ring Terminal, 16 AWG Conductor, 0.93 in L, Brazed Seam/Expanded Entry/Insulation Grip Sleeve/Internal Serration Barrel, Copper, Blue
Panduit® Pan-Term™ PN14-6RX-C Type PN-RX Ring Terminal, 16 AWG Conductor, 0.93 in L, Brazed Seam/Expanded Entry/Insulation Grip Sleeve/Internal Serration Barrel, Copper, Blue
MPN PN14-6RX-C
ASPN PANDPN146RXC
UPC 74983800421
Description
Features
- Insulation support helps to prevent wire damage in bending applications
- Ring tongue design assures a secure connection in high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
Specifications
GTIN: 00074983800421
UNSPSC: 39121409
Country of Origin: Mexico
| Color | Blue |
|---|---|
| Tongue Type | Ring |
| Conductor Type | Solid/Stranded |
| Voltage Rating | 600 V |
| Weight | 0.3 lbs |
| Conductor Size | 16 AWG |
| Material | Copper |
| Finish | Tin Plated |
| Temperature Rating | 221 deg F |
| BABA Compliant | No |
| Length | 0.93 in |
| Tongue Size | 0.31 in W x 0.03 in THK |
| Stud Size | #6 |
| Specifications | 0.2 in Dia Nylon Insulation, 0.22 in Mounting Hole Size, 1/4 in Clearance, 7/32 in L Wire Strip, Ring Shape Enclosure |
| Barrel Type | Brazed Seam/Expanded Entry/Insulation Grip Sleeve/Internal Serration |
| Type | Type PN-RX |
| Sold as |
