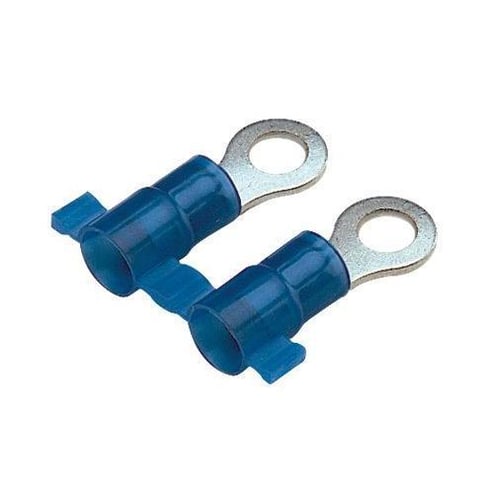

Panduit Reel Smart PN14-4R-3K Type PN-R Reel Ring Terminal, 14 AWG Conductor, 0.76 in L, Brazed Seam/Insulation Grip Sleeve/Internal Serration/Standard Barrel, Copper, Blue
Panduit Reel Smart PN14-4R-3K Type PN-R Reel Ring Terminal, 14 AWG Conductor, 0.76 in L, Brazed Seam/Insulation Grip Sleeve/Internal Serration/Standard Barrel, Copper, Blue
MPN PN14-4R-3K
ASPN PANDPN144R3K
UPC 74983806232
Description
Features
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Without insulation
Specifications
GTIN: 00074983806232
UNSPSC: 39121409
Country of Origin: Mexico
| Type | Type PN-R Reel |
|---|---|
| Color | Blue |
| Tongue Type | Ring |
| Conductor Type | Solid/Stranded |
| Barrel Type | Brazed Seam/Insulation Grip Sleeve/Internal Serration/Standard |
| Voltage Rating | 600 V |
| Specifications | 1/4 in Mounting Hole Size, Nylon Insulation, Ring Shape Enclosure |
| Stud Size | #4 |
| Conductor Size | 14 AWG |
| Tongue Size | 0.25 in W x 0.03 in THK |
| Length | 0.76 in |
| Material | Copper |
| Finish | Tin Plated |
| Temperature Rating | 221 deg F |
| BABA Compliant | No |
| Sold as |
