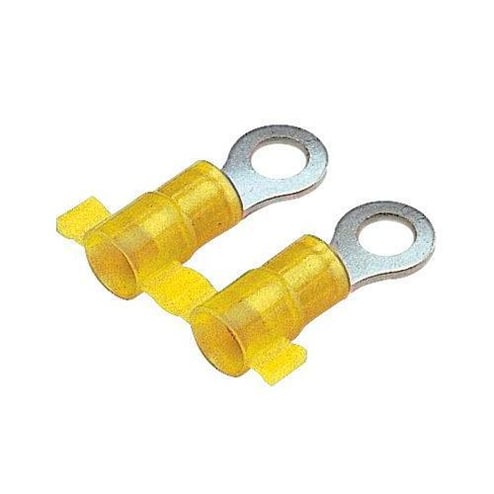

Panduit Reel Smart PN10-56R-2K Type PN-R Ring Terminal, 10 AWG Conductor, 1.21 in L, Brazed Seam/Insulation Grip Sleeve/Standard/Internal Serration Barrel, Copper, Yellow
Panduit Reel Smart PN10-56R-2K Type PN-R Ring Terminal, 10 AWG Conductor, 1.21 in L, Brazed Seam/Insulation Grip Sleeve/Standard/Internal Serration Barrel, Copper, Yellow
MPN PN10-56R-2K
ASPN PANDPN1056R2K
UPC 74983806331
Description
Features
- Ring tongue design assures a secure connection in high vibration applications
- Nickel plated copper for temperatures up to 650 deg F (343 deg C)
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Without insulation
Specifications
GTIN: 00074983806331
UNSPSC: 39121409
Country of Origin: Mexico
| Type | Type PN-R |
|---|---|
| Color | Yellow |
| Tongue Type | Ring |
| Conductor Type | Solid/Stranded |
| Barrel Type | Brazed Seam/Insulation Grip Sleeve/Internal Serration/Standard |
| Voltage Rating | 600 V |
| Weight | 2.6 lbs |
| Specifications | 0.28 in Mounting Hole Size, Nylon Insulation, Ring Shape Enclosure |
| Stud Size | 5/16 in |
| Conductor Size | 10 AWG |
| Tongue Size | 0.52 in W x 0.04 in THK |
| Length | 1.21 in |
| Material | Copper |
| Finish | Tin Plated |
| Temperature Rating | 221 deg F |
| BABA Compliant | No |
| Sold as |
