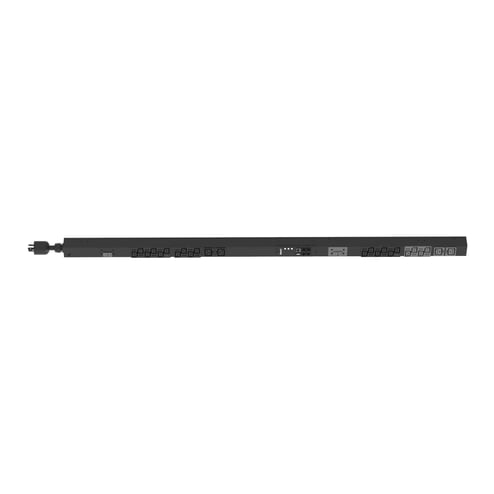

Panduit® SmartZone™ G5 P24D07M MI Series 1-Phase G5 Base Power Distribution Unit, 208 VAC, 30 A, 24 Outlets, 10 ft L Cord, Surface Mount


Description

Panduit® SmartZone™ G5 Power Distribution Unit, 1-Phase G5 Base, Series: MI Series, 208 VAC, 30 A, 24 Outlets, 10 ft Cord, 208 Hz, Surface Mount, NEMA L6-30P Plug, IEC C-13/IEC C-19 Receptacle, Black, 58.7 in L x 2 in W x 2.1 in D

The Panduit® SmartZone™ G5 iPDU is more than a power distribution unit and energy meter. These iPDU's monitor the data center power and environment (at the rack or cabinet level), by continuously scanning for electrical circuit overloads and physical environmental conditions that place critical IT equipment at risk. Panduit® iPDU's provide comprehensive, accurate, energy measurement data to efficiently use power resources, make informed capacity planning decisions, improve uptime, measure PUE (power usage effectiveness) and drive green data center initiatives to save energy and money. Making the right choice in IT equipment is essential for a safe, efficient data center operation. Our full range of iPDUs, environmental sensors and dual locking power cords are the key to fulfilling mission critical data center needs.

Features

  • Replace the controller and display module without having to power down the rack
  • Specifically designed for Landlord/Tenant (Co-Lo's) allowing for remote access of real-time, vital statistics and operating information on two separate, secure networks
  • Not only physical but hardened digital security, layers within the firmware LDAP, SNMP v3, TLS, encrypted security, allows for Panduit® PDUs to pass standard certified security scans
  • Digital sensors not only allow for multiple sensors on the same bus, but also identify themselves to the controller to simplify setup and commissioning
  • The intelligent PDUs feature an enhanced designed web interface which detects the type of device that you are on and automatically adjusts the screen for an optimal experience
  • Meets demands of densely packed IT equipment in rack or cabinet space
  • Optimal form factor enables efficient rack space utilization
  • Easily identify phase to outlet banks to aid in fault isolation or load balancing
  • Meets NEC requirements and installation guidelines for IT equipment
  • A full breadth offering to seamlessly interoperate with existing building power wiring schemes
  • Rack PDUs that have the ability for aggregate power monitoring to quickly identify potential power issues and reclaim available or under utilized power capacity

Specifications

GTIN: 00613056318045

UNSPSC: 39121031

Alternative Part Number: 14160601

Country of Origin: India

Color
Black
Voltage Rating
208 VAC
Amperage Rating
30 A
Mounting
Surface
BABA Compliant
No
Number of Outlets
24
Series
MI Series
Dimensions
58.7 in L x 2 in W x 2.1 in D
Receptacle Type
IEC C-13/IEC C-19
Plug Type
NEMA L6-30P
Frequency Rating
208 Hz
Cord Length
10 ft
Type
1-Phase G5 Base
