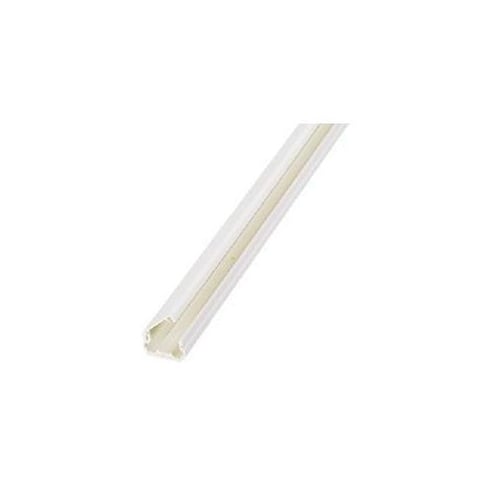

Panduit® Pan-Way™ LDPH5EI10-A 2-Piece Latching Power Rated Tamper-Resistant Surface Raceway, 10 ft L x 1.02 in W x 0.55 in H, 1 Channel, PVC


Description

Panduit® Pan-Way™ Surface Raceway, 2-Piece Latching Power Rated Tamper-Resistant, Series: LDPH, 10 ft Length, 1.02 in Width, 0.55 in Height, 600 VAC, 1 Channels, Coaxial/Data Grade/Electrical/Fiber Optic Cable, Adhesive Back, Hinged Cover, 0 to 50 deg C, Surface Mounting, PVC, Electric Ivory, Smooth

LDPH non-metallic series is a power rated, single channel, pre-assembled 2-piece hinged cover design surface raceway. It shall be suitable for use in applications up to 600 VAC, shall include adhesive backing and shall be made of impact-resistant material with a smooth finish that shall not scratch, peel or corrode. The raceway shall include an assortment of bend radius and standard fittings that complement the offering to help route, protect and conceal power or low voltage cabling. LDPH raceway shall be available in three sizes and four standard colors that shall be optimized for use with the Panduit® Pan-Net® communication system.

Features

  • Pre-assembled 2-piece hinged cover design cover remains open without use of tools or fixtures, speeds placement of cables into the raceway
  • Non-slip liner cover, keeps cover from sliding when in an open position particularly useful when product is used in vertical applications
  • 1 in bend radius fittings
  • Highly tamper-resistant difficult for untrained personnel to access the raceway, provides maximum security for communication cabling and maximum safety for power cabling
  • Mounting holes in base eliminates need for drilling holes in raceway and speeds installations
  • Designed to provide easy and economical solutions for routing any low voltage cable along smooth and clean perimeter walls, baseboards or ceilings
  • Tamper-resistant 2-piece latching surface raceway
  • Supplied with pre-punched mounting holes and factory applied adhesive tape
  • Full length adhesive strip allows easy tool-free installations and works well for temporary mounting adhesive backing

Specifications

GTIN: 00074983343966

UNSPSC: 39131710

Type
2-Piece Latching Power Rated Tamper-Resistant
Voltage Rating
600 VAC
Back Type
Adhesive
Height
0.55 in
Cover Type
Hinged
Mounting Type
Surface
Number of Channels
1
BABA Compliant
No
Temperature Rating
0 to 50 deg C
Finish
Smooth
Material
PVC
Series
LDPH
Length
10 ft
Cable Type
Coaxial/Data Grade/Electrical/Fiber Optic
Width
1.02 in
Color
Electric Ivory
