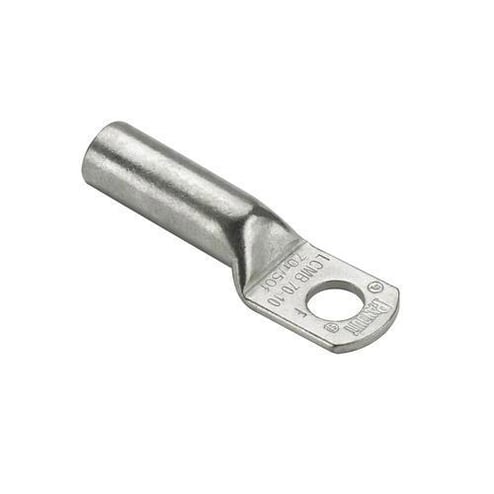

Panduit Pan-Lug LCMB16-10-L LCMB 1-Hole Metric Compression Connector Lug, 10 to 16 sq-mm Rigid/Flexible Stranded Copper Conductor, Die Code: P21, M10 Stud, Tin Plated Copper
Panduit Pan-Lug LCMB16-10-L LCMB 1-Hole Metric Compression Connector Lug, 10 to 16 sq-mm Rigid/Flexible Stranded Copper Conductor, Die Code: P21, M10 Stud, Tin Plated Copper
MPN LCMB16-10-L
ASPN PANDLCMB1610L
UPC 74983617890
Description
Features
- Tin plated to inhibit corrosion
- Color coded barrel
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Specifications
GTIN: 00074983617890
UNSPSC: 39121405
Country of Origin: India
| Weight | 0 lbs |
|---|---|
| Stud Size | M10 |
| Conductor Size | 10 to 16 sq-mm |
| BABA Compliant | No |
| Temperature Rating | 90 deg C |
| Material | Tin Plated Copper |
| Die Code | P21 |
| Series | LCMB |
| Voltage Rating | 35 kV |
| Barrel Type | Long |
| Conductor Type | Rigid/Flexible Stranded Copper |
| Tongue Type | Round/Straight |
| Type | 1-Hole Metric |
| Sold as |
