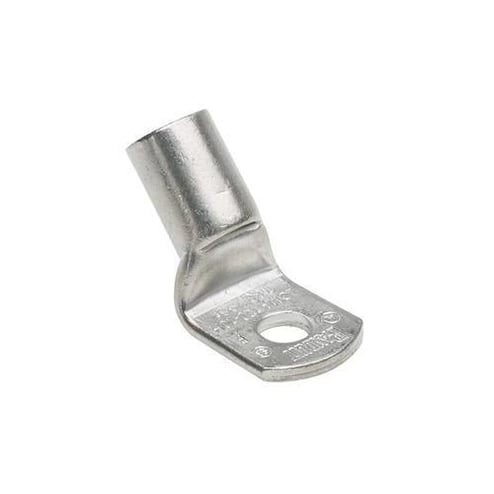

Panduit® Pan-Lug™ LCMAX300-16H-5 LCMAX 1-Hole Metric Compression Connector Lug With Inspection Window, 300 sq-mm Copper Conductor, M16 Stud, Tin Plated Copper
Panduit® Pan-Lug™ LCMAX300-16H-5 LCMAX 1-Hole Metric Compression Connector Lug With Inspection Window, 300 sq-mm Copper Conductor, M16 Stud, Tin Plated Copper
MPN LCMAX300-16H-5
ASPN PANDLCMAX30016H5
UPC 74983777327
Description
Features
- Tin plated to inhibit corrosion
- Color coded barrel
- Inspection window to visually assure full conductor insertion
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Specifications
GTIN: 00074983777327
UNSPSC: 39121405
Alternative Part Number: 12341904
Country of Origin: India
| BABA Compliant | No |
|---|---|
| Voltage Rating | 35 kV |
| Barrel Type | Standard |
| Tongue Type | 45 deg |
| Type | 1-Hole Metric |
| Material | Tin Plated Copper |
| Temperature Rating | 90 deg C |
| Conductor Size | 300 sq-mm |
| Conductor Type | Copper |
| Stud Size | M16 |
| Series | LCMAX |
| Sold as |
