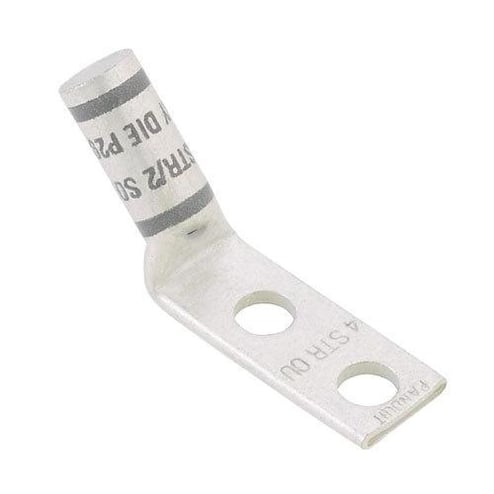

Panduit® Pan-Lug™ LCDX2/0-14AH-X LCDX 2-Hole Compression Connector Lug With Inspection Window, 2/0 AWG Extra-Flexible/Flexible Copper Conductor, Die Code: P45, 42.826 in Stud, Tin Plated Copper
Panduit® Pan-Lug™ LCDX2/0-14AH-X LCDX 2-Hole Compression Connector Lug With Inspection Window, 2/0 AWG Extra-Flexible/Flexible Copper Conductor, Die Code: P45, 42.826 in Stud, Tin Plated Copper
MPN LCDX2/0-14AH-X
ASPN PANDLCDX2014AHX
UPC 74983427666
Description
Features
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- 2/0 AWG class B, C, G, H, I, K, M and DLO conductor
Specifications
GTIN: 00074983427666
UNSPSC: 39121405
Country of Origin: Mexico
| Color | Black |
|---|---|
| Tongue Size | 0.96 in W x 0.13 in THK |
| Temperature Rating | 90 deg C |
| BABA Compliant | No |
| Mounting Hole Size | 42.954 in |
| Material | Tin Plated Copper |
| Stud Size | 42.826 in |
| Voltage Rating | 35 kV |
| Barrel Type | Standard |
| Conductor Type | Extra-Flexible/Flexible Copper |
| Tongue Type | 45 deg |
| Type | 2-Hole |
| Series | LCDX |
| Specifications | 0.63 in Stud Hole Spacing |
| Overall Length | 2.3 in |
| Barrel Size | 0.83 in L |
| Conductor Size | 2/0 AWG |
| Die Code | P45 |
| Sold as |
