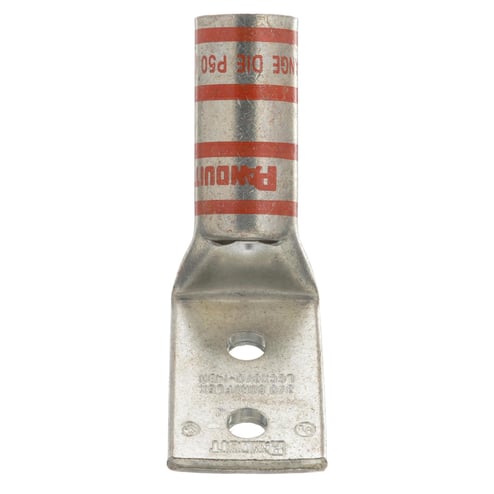

Panduit® Pan-Lug™ LCCX3/0-14BH-X LCCX 2-Hole Compression Connector Lug With Inspection Window, 3/0 AWG Flexible Conductor, Die Code: P50, 42.826 in Stud, Tin Plated Copper
Panduit® Pan-Lug™ LCCX3/0-14BH-X LCCX 2-Hole Compression Connector Lug With Inspection Window, 3/0 AWG Flexible Conductor, Die Code: P50, 42.826 in Stud, Tin Plated Copper
MPN LCCX3/0-14BH-X
ASPN PANDLCCX3014BHX
UPC 74983425945
Description
Features
- Long barrel maximizes number of crimps and provides premium wire pullout strength and electrical performance
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- 3/0 AWG class B, C, G, H, I, K, M and DLO conductor
Specifications
GTIN: 00074983425945
UNSPSC: 39121405
Country of Origin: Mexico
| Type | 2-Hole |
|---|---|
| Barrel Size | 1.56 in L |
| Color | Orange |
| Overall Length | 2.98 in |
| Tongue Type | 45 deg |
| Conductor Type | Flexible |
| Barrel Type | Long |
| Voltage Rating | 35 kV |
| Stud Size | 42.826 in |
| Conductor Size | 3/0 AWG |
| Tongue Size | 1.06 in W x 0.14 in THK |
| Series | LCCX |
| Die Code | P50 |
| Material | Tin Plated Copper |
| Temperature Rating | 90 deg C |
| Mounting Hole Size | 1.63 in |
| BABA Compliant | No |
| Sold as |
