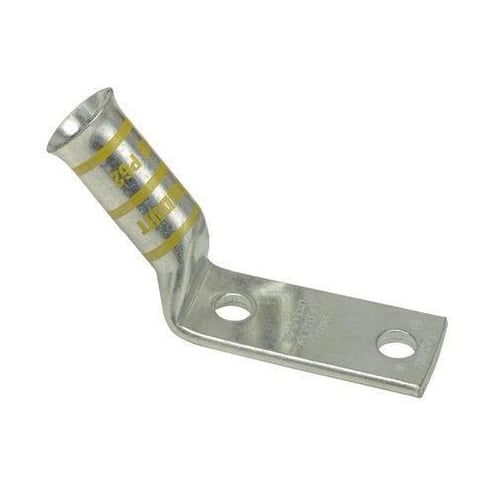

Panduit® Pan-Lug™ LCCF2/0-14AH-X LCCF 2-Hole Compression Connector Lug, 2/0 AWG Copper Conductor, Die Code: P50, 1/4 in Stud, Tin Plated Copper
Panduit® Pan-Lug™ LCCF2/0-14AH-X LCCF 2-Hole Compression Connector Lug, 2/0 AWG Copper Conductor, Die Code: P50, 1/4 in Stud, Tin Plated Copper
MPN LCCF2/0-14AH-X
ASPN PANDLCCF2014AHX
UPC 74983890958
Description
Features
- Long barrel maximizes number of crimps and provides premium wire pullout strength and electrical performance
- Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin plated to inhibit corrosion
- Without inspection window lug
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- 2/0 AWG class K and M and DLO conductor
Specifications
GTIN: 00074983890958
UNSPSC: 39121405
Country of Origin: Mexico
| Tongue Size | 0.96 in W x 0.13 in THK |
|---|---|
| BABA Compliant | No |
| Mounting Hole Size | 1.56 in |
| Temperature Rating | 90 deg C |
| Material | Tin Plated Copper |
| Series | LCCF |
| Specifications | 5/8 in Stud Hole Spacing |
| Barrel Type | Flared/Long |
| Conductor Type | Copper |
| Color | Orange |
| Stud Size | 1/4 in |
| Type | 2-Hole |
| Tongue Type | 45 deg |
| Voltage Rating | 35 kV |
| Conductor Size | Feb-00 AWG |
| Die Code | P50 |
| Barrel Size | 1-1/2 in L |
| Overall Length | 2.92 in |
| Sold as |
