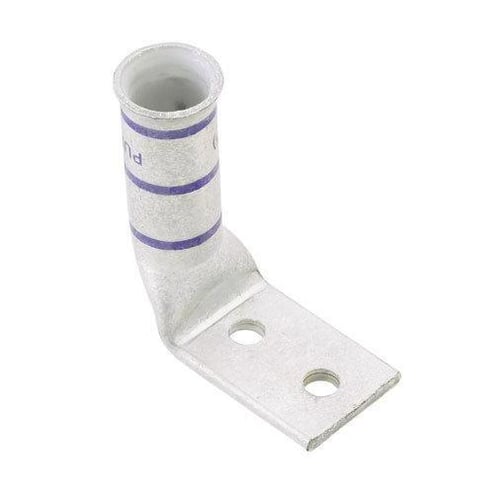

Panduit® Pan-Lug™ LCCF1-14BF-X LCCF 2-Hole Compression Connector Lug, 1 AWG Copper Conductor, Die Code: P42, 1/4 in Stud, Tin Plated Copper
Panduit® Pan-Lug™ LCCF1-14BF-X LCCF 2-Hole Compression Connector Lug, 1 AWG Copper Conductor, Die Code: P42, 1/4 in Stud, Tin Plated Copper
MPN LCCF1-14BF-X
ASPN PANDLCCF114BFX
UPC 74983890057
Description
Features
- Long barrel maximizes number of crimps and provides premium wire pullout strength and electrical performance
- Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin plated to inhibit corrosion
- Without inspection window lug
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- 1 AWG class K and M and DLO conductor
Specifications
GTIN: 00074983890057
UNSPSC: 39121405
Country of Origin: Mexico
| BABA Compliant | No |
|---|---|
| Specifications | 3/4 in Stud Hole Spacing |
| Overall Length | 2.24 in |
| Type | 2-Hole |
| Mounting Hole Size | 1-1/2 in |
| Tongue Type | 90 deg |
| Voltage Rating | 35 kV |
| Stud Size | 1/4 in |
| Conductor Size | 1 AWG |
| Tongue Size | 0.76 in W x 0.12 in THK |
| Series | LCCF |
| Die Code | P42 |
| Material | Tin Plated Copper |
| Temperature Rating | 90 deg C |
| Conductor Type | Copper |
| Barrel Type | Flared/Long |
| Barrel Size | 1.44 in L |
| Color | Pink |
