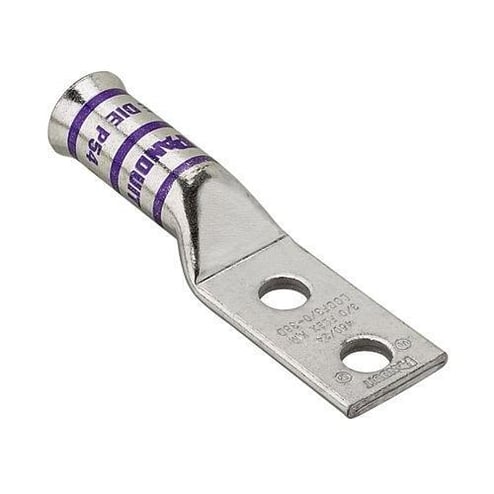

Panduit Pan-Lug LCCF1/0-56C-X 2-Hole Compression Connector Lug, 1/0 AWG Copper Conductor, Die Code: P45, 42.491 in Stud, Copper
Panduit Pan-Lug LCCF1/0-56C-X 2-Hole Compression Connector Lug, 1/0 AWG Copper Conductor, Die Code: P45, 42.491 in Stud, Copper
MPN LCCF1/0-56C-X
ASPN PANDLCCF1056CX
UPC 74983753086
Description
Features
- Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin plated to inhibit corrosion
- Without inspection window lug
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- Without inspection window
Specifications
GTIN: 00074983753086
UNSPSC: 39121405
| Type | 2-Hole |
|---|---|
| Barrel Size | 1-1/2 in L |
| Color | Black |
| Overall Length | 3.63 in |
| Tongue Type | Straight |
| Conductor Type | Copper |
| Barrel Type | Flared/Long |
| Voltage Rating | 35 kV |
| Specifications | 7/8 in Stud Hole Spacing |
| Stud Size | 42.491 in |
| Conductor Size | 1/0 AWG |
| Tongue Size | 0.85 in W x 0.13 in THK |
| Series | LCCF |
| Die Code | P45 |
| Material | Tin Plated Copper |
| Temperature Rating | 90 deg C |
| Mounting Hole Size | 1.56 in |
| BABA Compliant | No |
| Sold as |
