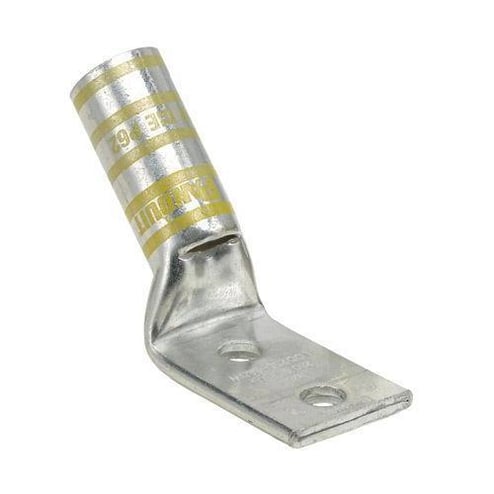

Panduit® Pan-Lug™ LCC1/0-14BWH-X LCC 2-Hole Compression Connector Lug With Inspection Window, 1/0 AWG, Die Code: P42, 42.826 in Stud, Tin Plated Copper


Description

Panduit® Pan-Lug™ Compression Connector Lug, 2-Hole, Series: LCC, 1/0 AWG Conductor, Die Code: P42, 35 kV, 42.826 in Stud, 45 deg Tongue, 0.76 in W x 0.12 in THK Tongue, 2.73 in Overall Length, Long Barrel, 1.44 in L Barrel, 90 deg C, 1-1/2 in Mounting Hole, Tin Plated Copper, Pink

Features

  • Long barrel maximizes number of crimps and provides premium wire pullout strength and electrical performance
  • Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
  • Tin plated to inhibit corrosion
  • Without inspection window lug
  • Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V

Specifications

GTIN: 00074983807901

UNSPSC: 39121405

Alternative Part Number: 7456211

Country of Origin: Mexico

BABA Compliant
No
Conductor Size
1/0 AWG
Color
Pink
Type
2-Hole
Barrel Type
Long
Tongue Type
45 deg
Voltage Rating
35 kV
Stud Size
42.826 in
Tongue Size
0.76 in W x 0.12 in THK
Series
LCC
Die Code
P42
Material
Tin Plated Copper
Temperature Rating
90 deg C
Mounting Hole Size
1-1/2 in
Barrel Size
1.44 in L
Overall Length
2.73 in
