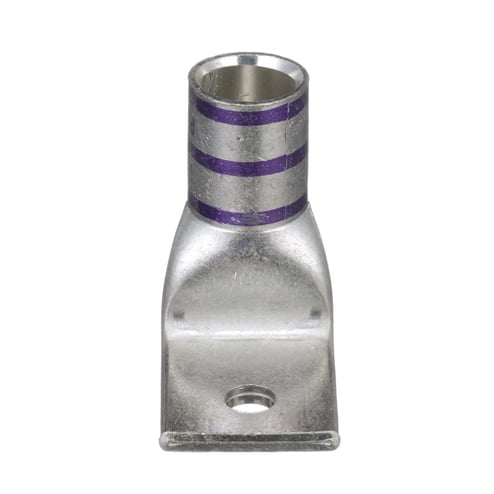

Panduit Pan-Lug LCAX4/0-56F-X LCAX 1-Hole Compression Connector Lug With Inspection Window, 4/0 AWG Extra-Flexible/Flexible Copper Conductor, Die Code: P54, 42.491 in Stud, Tin Plated Copper
Panduit Pan-Lug LCAX4/0-56F-X LCAX 1-Hole Compression Connector Lug With Inspection Window, 4/0 AWG Extra-Flexible/Flexible Copper Conductor, Die Code: P54, 42.491 in Stud, Tin Plated Copper
MPN LCAX4/0-56F-X
ASPN PANDLCAX4056FX
UPC 74983435609
Description
Features
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- 4/0 AWG class B, C, G, H, I, K, M and DLO conductor
Specifications
GTIN: 00074983435609
UNSPSC: 39121405
Country of Origin: Mexico
| Type | 1-Hole |
|---|---|
| Barrel Size | 1.03 in L |
| Color | Purple |
| Overall Length | 2.07 in |
| Tongue Type | 90 deg |
| Conductor Type | Extra-Flexible/Flexible Copper |
| Barrel Type | Standard |
| Voltage Rating | 35 kV |
| Stud Size | 42.491 in |
| Conductor Size | 4/0 AWG |
| Tongue Size | 1.19 in W x 0.16 in THK |
| Series | LCAX |
| Die Code | P54 |
| Material | Tin Plated Copper |
| Temperature Rating | 90 deg C |
| Mounting Hole Size | 10-5/8 in |
| BABA Compliant | No |
| Sold as |
