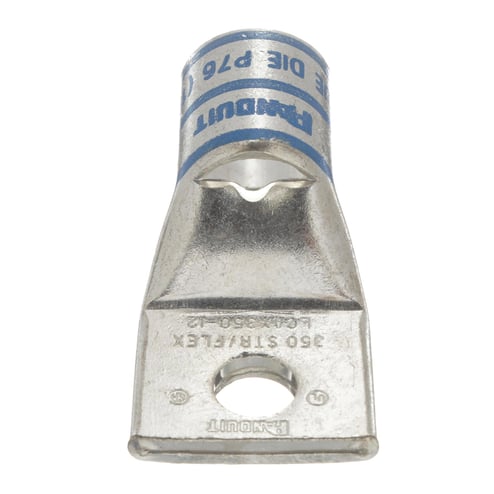

Panduit® Pan-Lug™ LCAX350-12-6 1-Hole Compression Lug Connector With Inspection Window, 350 kcmil, 373.7 kcmil Flexible Copper Conductor, Die Code: P76, 1/2 in Stud, Tin Plated Copper
Panduit® Pan-Lug™ LCAX350-12-6 1-Hole Compression Lug Connector With Inspection Window, 350 kcmil, 373.7 kcmil Flexible Copper Conductor, Die Code: P76, 1/2 in Stud, Tin Plated Copper
MPN LCAX350-12-6
ASPN PANDLCAX350126
UPC 74983435913
Description
Features
- Color-coded bands for proper die selection and crimp placement
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Tin-plated to inhibit corrosion
- An inspection window aids to visually assure full conductor insertion and the tin-plate material helps to inhibit corrosion
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive
- Consult cable manufacturer for voltage stress relief instructions with application greater than 2000 V
Specifications
GTIN: 00074983435913
UNSPSC: 39121405
Country of Origin: Mexico
| Type | 1-Hole |
|---|---|
| Color | Blue |
| Overall Length | 3.09 in |
| Tongue Type | Straight |
| Conductor Type | Flexible Copper |
| Barrel Type | Standard/Inspection Window |
| Voltage Rating | 35 kV |
| Weight | 0 lbs |
| Stud Size | 1/2 in |
| Conductor Size | 350 kcmil, 373.7 kcmil |
| Tongue Size | 1.54 in W x 0.22 in THK |
| Series | LCAX |
| Die Code | P76 |
| Material | Tin Plated Copper |
| Temperature Rating | 90 deg C |
| Mounting Hole Size | 1-3/8 in |
| BABA Compliant | No |
| Specifications | 1.38 in L Wire Strip, Tin Plated |
| Barrel Size | 0.84 in ID x 1.06 in OD x 1.29 in L |
| Sold as |
