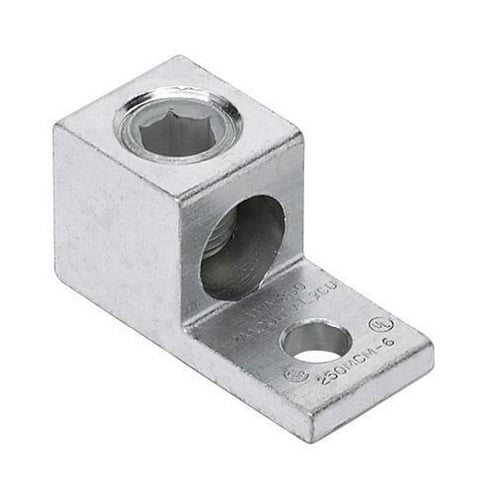

Panduit® Pan-Lug™ LAMA600-38-6Y 1-Barrel Mechanical Connector Lug, 2 AWG to 600 kcmil AluminumCopperStranded Conductor, 38 in Stud, 1 Bolt Holes, Aluminum
Panduit® Pan-Lug™ LAMA600-38-6Y 1-Barrel Mechanical Connector Lug, 2 AWG to 600 kcmil AluminumCopperStranded Conductor, 38 in Stud, 1 Bolt Holes, Aluminum
MPN LAMA600-38-6Y
ASPN PANDLAMA600386Y
UPC 74983596171
Description
Features
- Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
- Wide wire range-taking capability minimizes inventory requirements
- Inspection window to visually assure full conductor insertion
- Plated steel or aluminum set screw provides high strength, durable electrical contact between conductor and connector
- Dual barrel provides termination of two conductors
- Compact design saves space
Specifications
GTIN: 00074983596171
UNSPSC: 39121408
| Type | 1-Barrel |
|---|---|
| Tongue Type | Straight |
| Conductor Type | Aluminum/Copper/Stranded |
| Voltage Rating | 600 VAC |
| Specifications | 1/2 in Hex, 1 Conductor, 1.38 in L Wire Strip |
| Stud Size | 3/8 in |
| Conductor Size | 2 AWG to 600 kcmil |
| Tongue Size | 1.81 in L x 1.6 in W x 0.44 in THK |
| Dimensions | 3.18 in L x 1.6 in W x 1.57 in H |
| Series | LAMA |
| Material | Aluminum |
| Finish | Tin Plated |
| Temperature Rating | 90 deg C |
| Number of Bolt Holes | 1 |
| BABA Compliant | No |
| Sold as |
