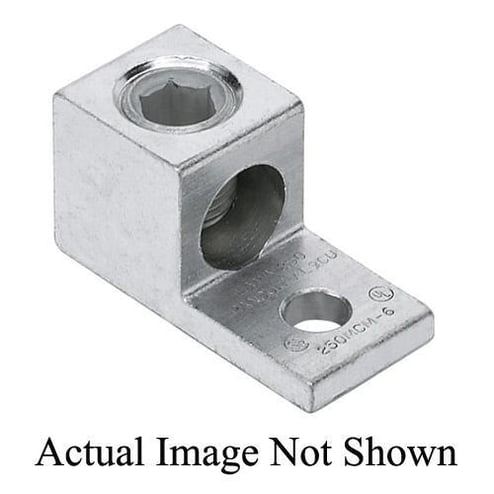

Panduit® LAMA1/0-14-QY 1- Barrel Mechanical Lug, 14 to 1/0 AWG Aluminum/Stranded Copper Conductor, 1/4 in Stud, 1 Bolt Hole, Aluminum
Panduit® LAMA1/0-14-QY 1- Barrel Mechanical Lug, 14 to 1/0 AWG Aluminum/Stranded Copper Conductor, 1/4 in Stud, 1 Bolt Hole, Aluminum
MPN LAMA1/0-14-QY
ASPN PANDLAMA1014QY
UPC 74983595310
Description
Features
- Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
- Wide wire range taking capability minimizes inventory requirements
- Inspection window to visually assure full conductor insertion
- Plated steel or aluminum setscrew provides high strength, durable electrical contact between conductor and connector
- Tin plated to inhibit corrosion
- Compact design saves space
Specifications
GTIN: 00074983595310
UNSPSC: 39121408
Country of Origin: India
| Type | 1- Barrel |
|---|---|
| Tongue Type | Straight |
| Conductor Type | Aluminum/Stranded Copper |
| Voltage Rating | 600 VAC |
| Weight | 9.7 lbs |
| Specifications | Slotted Head Screw, 0.62 in L Wire Strip |
| Stud Size | 1/4 in |
| Conductor Size | 14 to 1/0 AWG |
| Tongue Size | 0.85 in L x 0.62 in W x 0.19 in THK |
| Dimensions | 1.47 in L x 0.62 in W x 0.79 in H |
| Series | LAMA |
| Material | Aluminum |
| Volume | 0 |
| Finish | TiN Coated |
| Temperature Rating | 90 deg C |
| Number of Bolt Holes | 1 |
| BABA Compliant | No |
| Sold as |
