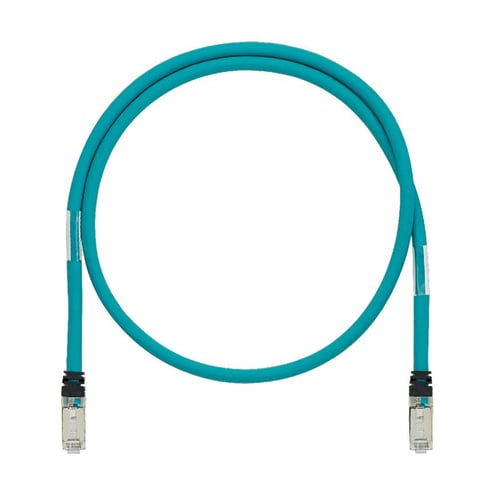

Panduit® IndustrialNet™ ISTPH6X0.3MBL Flame-Retardant Patch Cord With 7.4 mm Cable Jacket, Cat 6A, 26 AWG Shielded Twisted 4-Pair SF/UTP Stranded Copper Conductor, 4-Pair RJ45 T568B 8-Position Modular Plug Connector, 0.3 m L Cord
Panduit® IndustrialNet™ ISTPH6X0.3MBL Flame-Retardant Patch Cord With 7.4 mm Cable Jacket, Cat 6A, 26 AWG Shielded Twisted 4-Pair SF/UTP Stranded Copper Conductor, 4-Pair RJ45 T568B 8-Position Modular Plug Connector, 0.3 m L Cord
MPN ISTPH6X0.3MBL
ASPN PANDISTPH6X03MBL
UPC 613056571747
Description
Features
- Robust 600 V rated construction - allows for patch runs between automation devices in industrial environments, rated for 600 V panel or on-machine applications when the space is shared with high voltage power cables, plug contact plated with 50 micro inches of gold
- 100% performance tested for wire map, next and return loss - factory testing provides confidence that each patch cord delivers specified performance
- Centered de-embedded plug - performs in center of ANSI/TIA-568-C.2 component range, ensuring interoperability and optimum performance
- Integral pair manager - optimizes performance and consistency by reducing untwist at the plug
- Flexible stranded cable - 26 AWG stranded copper cable with a nominal diameter of 7.4 mm (0.29 in) allows for high density applications and superior panel cable management
- Identification provides for future traceability - identification of performance level, length and quality control number is provided on each cord
Specifications
GTIN: 00613056571747
UNSPSC: 43223301
Country of Origin: Costa Rica
| Category Type | Cat 6A |
|---|---|
| Voltage Rating | 600 V |
| Conductor Size | 26 AWG |
| Jacket Color | Black |
| Connector Type | 4-Pair RJ45 T568B 8-Position Modular Plug |
| Temperature Rating | -10 to 60 deg F |
| BABA Compliant | No |
| Conductor Type | Shielded Twisted 4-Pair SF/UTP Stranded Copper |
| Jacket Material | TPE |
| Cord Length | 0.3 m |
| Type | Flame-Retardant |
| Sold as |
