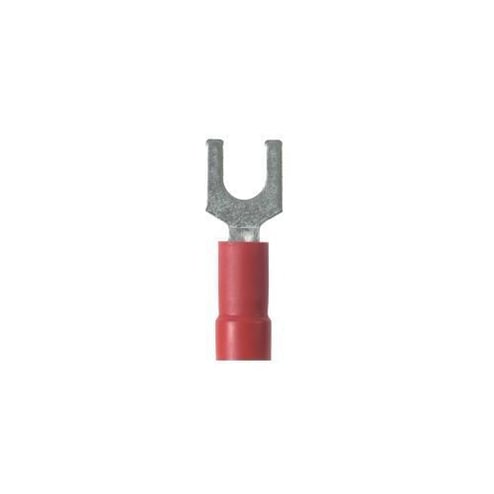

Panduit® EV18-10FB-Q Type EV-FB Loose Piece Fork Terminal, 18 AWG Conductor, 0.93 in L, Butted Seam/Funnel Entry/Standard/Internal Serration Barrel, Copper, Red
Panduit® EV18-10FB-Q Type EV-FB Loose Piece Fork Terminal, 18 AWG Conductor, 0.93 in L, Butted Seam/Funnel Entry/Standard/Internal Serration Barrel, Copper, Red
MPN EV18-10FB-Q
ASPN PANDEV1810FBQ
UPC 613056366466
Description
Features
- Fork design provides for fast and easy installation, without the need to remove fastener
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Brazed seam protects terminal barrel from splitting during the crimp process
- Non-expanded insulation
- For use with CT-100A, CT-600-A, CT-1550, CT-1551, CT-2300/ST and CT-2500/L crimping tools
Specifications
GTIN: 00613056366466
UNSPSC: 39121409
Country of Origin: Mexico
| Type | Type EV-FB Loose Piece |
|---|---|
| Color | Red |
| Conductor Type | Stranded Copper |
| Voltage Rating | 600 V |
| Specifications | 0.15 in Dia Vinyl Insulation, 0.31 in Mounting Hole Size, 5/16 in L Wire Strip |
| Conductor Size | 18 AWG |
| Material | Copper |
| Finish | Tin Plated |
| Temperature Rating | 221 deg F |
| BABA Compliant | No |
| Length | 0.93 in |
| Tongue Size | 0.35 in W x 0.032 in THK |
| Stud Size | #10 |
| Weight | 13 lbs |
| Barrel Type | Butted Seam/Funnel Entry/Standard/Internal Serration |
| Tongue Type | Fork |
| Sold as |
