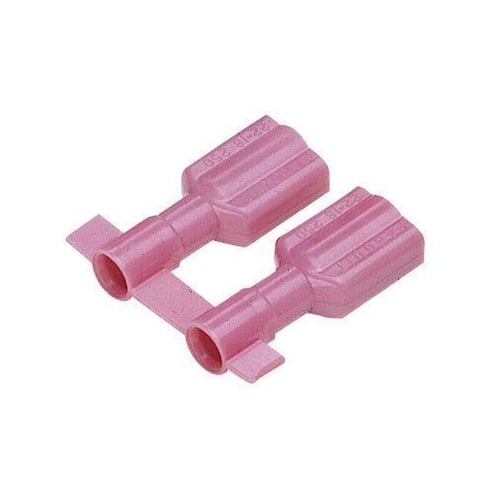

Panduit® Reel Smart™ DPF18-111FIB-3K Type DPF-FIB Reel Vibration-Resistant Female Disconnect, 18 AWG Conductor, 0.11 in W x 0.02 in THK Tab, Butted Seam/Funnel Entry Barrel, Brass, Red, Fully Insulated
Panduit® Reel Smart™ DPF18-111FIB-3K Type DPF-FIB Reel Vibration-Resistant Female Disconnect, 18 AWG Conductor, 0.11 in W x 0.02 in THK Tab, Butted Seam/Funnel Entry Barrel, Brass, Red, Fully Insulated
MPN DPF18-111FIB-3K
ASPN PANDDPF18111FIB3K
UPC 74983824151
Description
Features
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Specifications
GTIN: 00074983824151
UNSPSC: 39121409
Country of Origin: Mexico
| Type | Type DPF-FIB Reel Vibration-Resistant |
|---|---|
| Terminal Type | Crimp |
| Color | Red |
| Conductor Type | Stranded |
| Barrel Type | Butted Seam/Funnel Entry |
| Voltage Rating | 600 V |
| Specifications | 0.28 in Mounting Hole Size, Premium Nylon Insulation |
| Conductor Size | 18 AWG |
| Dimensions | 0.71 in L x 0.19 in W x 0.17 in H |
| Tab Size | 0.11 in W x 0.02 in THK |
| Material | Brass |
| Finish | Tin Plated |
| Temperature Rating | 221 deg F |
| Insulated | Fully Insulated |
| BABA Compliant | No |
| Sold as |
