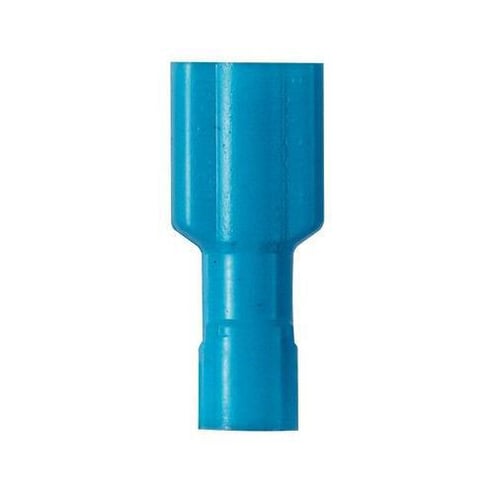

Panduit® DiscoGrip™ DPF14-250FIB-C Type DPF-FIB Loose Piece Vibration-Resistant Female Disconnect, 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, Brass, Blue, Fully Insulated
Panduit® DiscoGrip™ DPF14-250FIB-C Type DPF-FIB Loose Piece Vibration-Resistant Female Disconnect, 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, Brass, Blue, Fully Insulated
MPN DPF14-250FIB-C
ASPN PANDDPF14250FIBC
UPC 74983203888
Description
Features
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Premium nylon insulation retains its shape when crimped and provides a tight grip around the wire insulation for maximum strain relief
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Specifications
GTIN: 00074983203888
UNSPSC: 39121409
Alternative Part Number: 62NM14
Country of Origin: Mexico
| Terminal Type | Crimp |
|---|---|
| Color | Blue |
| Barrel Type | Butted Seam/Funnel Entry |
| Voltage Rating | 600 V |
| Conductor Size | 14 AWG |
| Material | Brass |
| BABA Compliant | No |
| Insulated | Fully Insulated |
| Temperature Rating | 221 deg F |
| Finish | Tin Plated |
| Tab Size | 0.25 in W x 0.032 in THK |
| Dimensions | 0.84 in L x 0.35 in W x 0.22 in H |
| Specifications | 0.156 in Dia Premium Nylon Insulation, 0.28 in Mounting Hole Size, 9/32 in L Wire Strip |
| Conductor Type | Stranded |
| Type | Type DPF-FIB Loose Piece Vibration-Resistant |
| Sold as |
