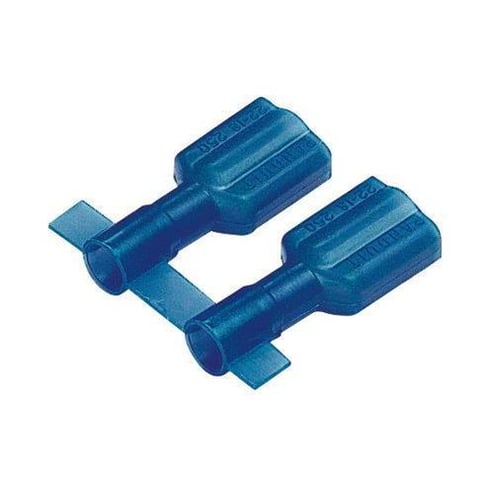

Panduit® Reel Smart™ DNF14-187FIB-3K Type DNF-FIB Reel Vibration-Resistant Female Disconnect, 14 AWG Conductor, 0.187 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, Brass, Blue, Fully Insulated
Panduit® Reel Smart™ DNF14-187FIB-3K Type DNF-FIB Reel Vibration-Resistant Female Disconnect, 14 AWG Conductor, 0.187 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, Brass, Blue, Fully Insulated
MPN DNF14-187FIB-3K
ASPN PANDDNF14187FIB3K
UPC 74983709786
Description
Features
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Specifications
GTIN: 00074983709786
UNSPSC: 39121409
Country of Origin: Mexico
| Terminal Type | Crimp |
|---|---|
| Color | Blue |
| Conductor Type | Stranded |
| Barrel Type | Butted Seam/Funnel Entry |
| Voltage Rating | 600 V |
| Weight | 0.3 lbs |
| Specifications | 0.16 in Dia Nylon Insulation, 0.28 in Mounting Hole Size, 9/32 in L Wire Strip |
| Conductor Size | 14 AWG |
| Tab Size | 0.187 in W x 0.032 in THK |
| Material | Brass |
| Finish | Tin Plated |
| Temperature Rating | 221 deg F |
| Insulated | Fully Insulated |
| BABA Compliant | No |
| Dimensions | 0.78 in L x 0.29 in W x 0.18 in H |
| Type | Type DNF-FIB Reel Vibration-Resistant |
| Sold as |
