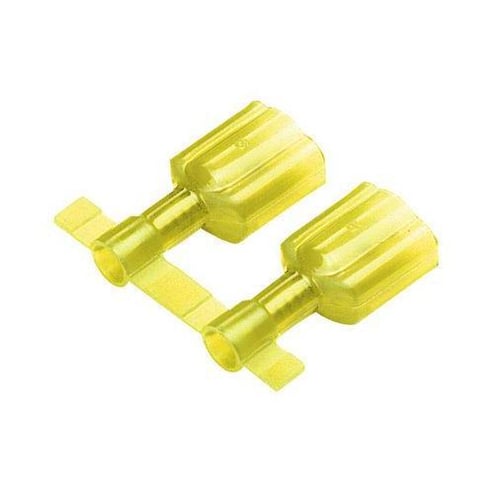

Panduit® Pan-Term™ DNF10-250FIMB-K DNF-FIMB Fully Insulated Vibration-Resistant Reel Disconnect, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Standard Barrel, Copper, Yellow
Panduit® Pan-Term™ DNF10-250FIMB-K DNF-FIMB Fully Insulated Vibration-Resistant Reel Disconnect, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Standard Barrel, Copper, Yellow
MPN DNF10-250FIMB-K
ASPN PANDDNF10250FIMBK
UPC 74983744770
Description
Features
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Fully insulated design provides protection from electrical shorts
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- Coupler, male and female parts sold separately
- Maximum insulation temperature 221 deg F
- UL flammability UL 94V-2/HB, maximum insulation temperature 221 deg F (105 deg C)
- UL and CSA-rated up to 600 VAC per UL 310
- Nylon barrel insulated
Specifications
GTIN: 00074983744770
UNSPSC: 39121409
Country of Origin: Mexico
| Type | Fully Insulated Vibration-Resistant Reel |
|---|---|
| Terminal Type | Male |
| Color | Yellow |
| Conductor Type | Stranded |
| Barrel Type | Butted Seam/Standard |
| Voltage Rating | 600 VAC |
| Specifications | 0.22 in Dia Maximum Nylon Insulation, 9/32 in L Wire Strip, Standard Barrel Configuration |
| Conductor Size | 12 to 10 AWG |
| Dimensions | 0.96 in L x 0.45 in W |
| Series | DNF-FIMB |
| Tab Size | 0.25 in W x 0.032 in THK |
| Material | Copper |
| Finish | Nickel Plated |
| Temperature Rating | 221 deg F |
| BABA Compliant | No |
| Sold as |
