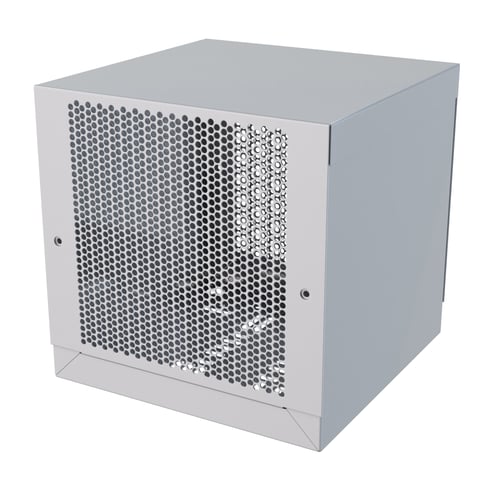

MTE RL-13012 LineLoad Reactor, 208 to 690 VAC, 130 A, 40 to 125 hp, 13 in H x 13 in W


Description

MTE Line/Load Reactor, Series: RL Series, 208 to 690 VAC, 130 A, 40 to 125 hp, 1 or 3 ph, 13 in Height, 13 in Width, 13 in Depth, NEMA 1 Enclosure, Surface Mounting, Gray, Polyester Powder Coated

MTE's RL line/load reactors are best-in-class power quality units with a long history of proven performance. Rugged and robust, they are unequaled in absorbing power line disturbances that can damage or shut down variable frequency drives (VFDs) and other sensitive equipment. They work on both the line side and load side, without derating, to give you an easy solution that reduces nuisance tripping, reduces harmonic distortion and minimizes long lead effects. Improved power quality, enhanced productivity and complete peace of mind are easy with RL line/load reactors.

Features

  • Best-in-class line/load reactors
  • 150% continuous overload
  • Line/load interchangeability without derating
  • Most robust, highest continuous service factor
  • Low watts loss
  • Reduces line side harmonic distortion to 30 to 35%
  • Reduces load side dv/dt rate, motor peak terminal voltage, operating temperature and audible noise
  • Improves waveform integrity for enhancement of motor performance and system efficiency

Specifications

UNSPSC: 39121015

Country of Origin: Mexico

Color
Gray
Voltage Rating
208 to 690 VAC
Depth
13 in
Enclosure Type
NEMA 1
Height
13 in
Mounting Type
Surface
Series
RL Series
Phase
1 or 3
Amperage Rating
130 A
Finish
Polyester Powder Coated
Horsepower
40 to 125 hp
BABA Compliant
No
Width
21.5 in
Sold as
1/PK
