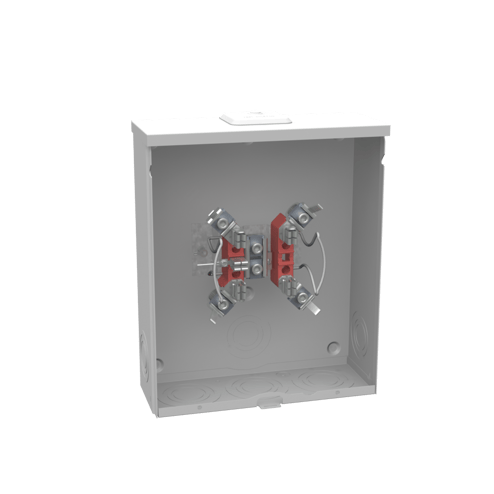

Milbank® U7043-XL-TG-KK-IL-5T9W Ringless Meter Socket, 600V, 200 A, 1 Phase, NEMA 3R


Description

Milbank® Meter Socket, Ringless, 600V, 200 A, 1 Phase, 60Hz, 5 Jaws ,6 AWG - 350 kcmil, Glass Polyester, Surface, NEMA 3R , 4.84 in L x 13 in W x 15.5 in H

Milbank's single position sockets are capable of serving a wide variety of needs, from a single-family house to a large industrial factory. With hundreds of configurations available, including many sizes, knockout configurations terminal configurations bypass options, hubs, locks and connectors, Milbank® has the socket you need to keep energy at work.

Features

  • 9 W power rating

Specifications

UNSPSC: 39121102

Terminal Type
Lay in
Wire Size
6 AWG - 350 kcmil
Frequency Rating
60 Hz
Voltage Rating
600 VAC
Weight
31.1 lbs
Enclosure Type
NEMA 3R
Mounting Type
Surface Mount
Phase
1
Amperage Rating
200 Amp
BABA Compliant
No
Number of Jaws
5 Terminal
Insulation
Glass Polyester
Dimensions
4.84L x 13W x 15.5H
Type
Ringless Meter Socket
Volume
50.1 cubic inches
