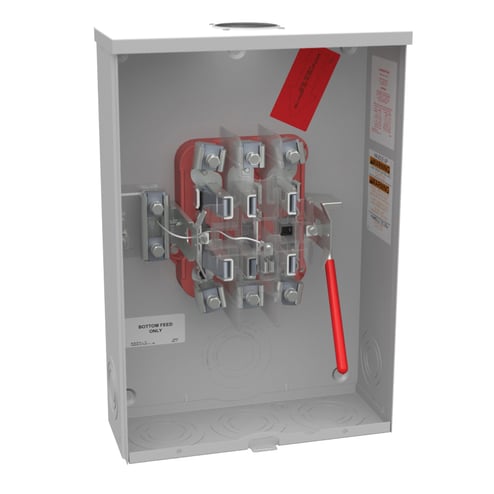

Milbank® U4701-RL-QG 1-Position 3-Wire Ground Lever Bypass Quadplex Ringless Meter Socket, 600 VAC, 200 A, 3 Phase, NEMA 3R Enclosure
Milbank® U4701-RL-QG 1-Position 3-Wire Ground Lever Bypass Quadplex Ringless Meter Socket, 600 VAC, 200 A, 3 Phase, NEMA 3R Enclosure
MPN U4701-RL-QG
ASPN MILU4701RLQG
UPC 784572139541
Description
Specifications
UNSPSC: 39121102
| Type | 1-Position 3-Wire Ground Lever Bypass Quadplex |
|---|---|
| Terminal Type | Lay-In |
| Wire Size | 6 AWG to 350 kcmil Line/Load Side |
| Frequency Rating | 60 Hz |
| Voltage Rating | 600 VAC |
| Weight | 37.5 lbs |
| Feed Type | Overhead/Underground |
| Hub Type | Small |
| Enclosure Type | NEMA 3R |
| Dimensions | 4.844 in L x 13 in W x 19 in H |
| Insulation | Glass Polyester |
| Mounting Type | Surface |
| Number of Jaws | 7 |
| Phase | 3 |
| Amperage Rating | 200 A |
| BABA Compliant | No |
| Sold as |
