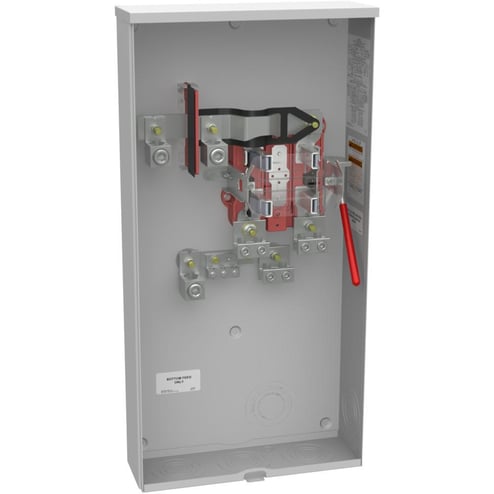

Milbank® U1797-O-K3L-K2L Ring Less Meter Socket, 600 VAC, 320 A, NEMA 3R Enclosure
Milbank® U1797-O-K3L-K2L Ring Less Meter Socket, 600 VAC, 320 A, NEMA 3R Enclosure
MPN U1797-O-K3L-K2L
ASPN MILU1797OK3LK2L
UPC 784572301726
Description
Features
- Single mechanical line-side and double mechanical load-side
- G90 galvanized steel enclosure material with powder coat finish
Specifications
GTIN: 00784572301726
UNSPSC: 39121102
Country of Origin: United States of America (the)
| Type | Ring Less |
|---|---|
| Terminal Type | Single/Double Mechanical |
| Wire Size | 4 AWG to 600 kcmil, 1/0 AWG to 250 kcmil, 6 AWG to 350 kcmil |
| Frequency Rating | 60 Hz |
| Voltage Rating | 600 VAC |
| Weight | 230 lbs |
| Width | 14 in |
| Feed Type | Underground |
| Hub Type | Blank |
| Enclosure Type | NEMA 3R |
| Dimensions | 13 in W x 4-7/8 in D x 30 in H |
| Mounting Type | Surface |
| Number of Jaws | 4 |
| Amperage Rating | 320 A |
| BABA Compliant | No |
| Sold as |
