Description

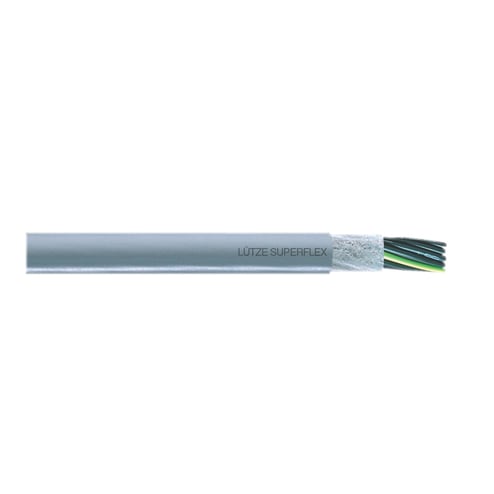

LUTZE SUPERFLEX® Flexible Control Cable, Unshielded, Series: A148, 600 V, 7 Conductors, Stranded Bare Copper Conductor, 18 AWG Conductor, 0.335 in OD, 100 MOhm Resistance, Special TPE Insulation, PVC Jacket, Gray Jacket, -15 to 90 deg C Moving/-40 to 105 deg C Fixed
Features
- High flexing control cable for continuous motion applications
- Suitable for control, monitoring and instrumentation applications with continuous flexing cycles
- For flexing applications such as drag chains and other applications where linear flexing occurs
- Compatible with all major drag chain brands
- Extremely small cable ODs due to special TPE High Glide insulation compliant with UL
- TPE/PVC combination for high performance flexing and longer cable runs
- Very flexible with superfine stranding
- Specially formulated PVC jacket per UL Class 43
- Non-wicking fillers
- Abrasion, high wear and tear resistance
- Hydrolysis, microbe and rot-resistant
- UV-resistant according to UL 1581
- Talc and silicone-free
Specifications
UNSPSC: 26121629
Country of Origin: Italy
| Outside Diameter | 0.335 in |
|---|---|
| Jacket Material | PVC |
| Voltage Rating | 600 V |
| Jacket Color | Gray |
| BABA Compliant | No |
| Temperature Rating | -15 to 90 deg C Moving/-40 to 105 deg C Fixed |
| Resistance | 100 MOhm |
| Series | A148 |
| Number of Conductors | 7 |
| Conductor Size | 18 AWG |
| Weight | 14 lbs |
| Conductor Type | Stranded Bare Copper |
| Insulation Material | Special TPE |
| Type | Unshielded |
| Sold as | 1/PK |
