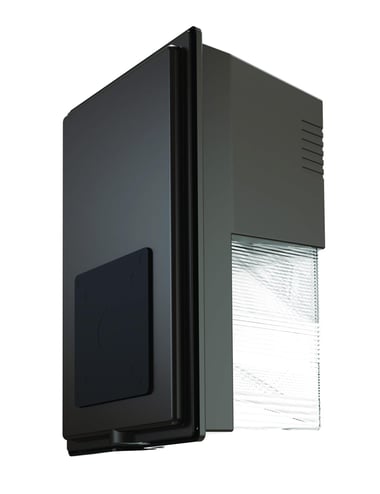

Lithonia Lighting TWS LED P1 50K MVOLT PE DDB M4 Wallpack With Button Photocell,) LED Lamp, 120 to 277 VAC, Dark Bronze Housing


Description

Lithonia Lighting Wallpack, Series: TWS LED, 120 to 277 VAC, 0.09/0.1/0.2/0.12 A, LED Lamp, 100000 hr Average Life, 5000 K Color, Polycarbonate Lens, 2124 Lumens, Wall Mount, Die Cast Aluminum Housing, Dark Bronze Housing, 10-7/8 in H x 6-3/4 in W x 5-5/16 in D

Our new "Traditional style" TWS LED luminaires offer the shapes you've grown accustomed to coupled with the cost effective, energy efficient LED's you want. This fixture was designed to fit seamlessly - eliminating unwanted markings from the removal of older fixtures. Replace one or replace them all. In either case, with energy savings of up to 80%, the Lithonia Lighting® TWS LED wall pack has you covered.

Features

  • Impact-resistant polycarbonate lens provides an even light distribution and protects electronics
  • Expected 20 year LED life
  • Standard photocell for dusk to dawn operation
  • Highly efficient LED's provide 119 lumens per watt
  • 0.2 A at 120 VAC, 0.12 A at 208 VAC, 0.1 A at 240 VAC, 0.09 A at 277 VAC
  • Replaces up to 100 W metal halide, saves 80% energy
  • Traditional form factor and payback within two years
  • The popular TWS luminaire is now available with long-lasting, energy-efficient LED technology
  • Featuring a classic dayform, the TWS LED offers a traditional appearance and is powered by advanced LEDs
  • The TWS LED luminaire is powerful yet energy efficient, capable of replacing up to a 70W HPS or 100W MH wall pack while saving up to 80% in energy costs
  • With long-life LEDs, the TWS LED eliminates frequent lamp and ballast replacements associated with traditional technologies
  • Dusk-to-dawn photocell automatically turns on at dusk and off at dawn for convenience and energy savings
  • Replace up to 70W HPS or 100W MH for up to 80% energy savings
  • UL Listed to US and Canadian safety standards for wet locations
  • High-performance LEDs maintain 70% of light output at 50,000 hr of service
  • Designed for wall mounting more than 4 in above the ground and mounts to a recessed junction box; all electronics in upper housing for easy wiring
  • Rugged cast-aluminum, corrosion-resistant rear mounting plate and impact resistant polycarbonate front cover/diffuser resists fading and cracking

Specifications

GTIN: 00191723952063

UNSPSC: 39111613

Discontinued Manufacturer Part Number: 249NF2

Country of Origin: China

Voltage Rating
120 to 277 VAC
Weight
0 lbs
Lamp Base Type
Medium
Lamp Type
LED
Mounting Type
Wall
Housing Finish
Dark Bronze
BABA Compliant
No
Lens Type
Polycarbonate
Amperage Rating
0.09/0.1/0.2/0.12 A
Lumens
2124 Lumens
Series
TWS LED
Color Rendering Index (CRI)
80
Lamp Wattage
18 W
Housing Material
Die Cast Aluminum
Color Temperature
5000 K
Average Life
100000 hr
Dimensions
10-7/8 in H x 6-3/4 in W x 5-5/16 in D
