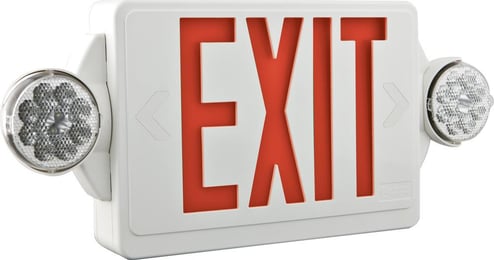

Lithonia Lighting® QUANTUM® LHQM LED R HO M6 Stencil Face Emergency Exit Unit Combo, LED Lamp, 4.3 W Fixture, 120277 VAC, White Housing, EXIT Legend
Lithonia Lighting® QUANTUM® LHQM LED R HO M6 Stencil Face Emergency Exit Unit Combo, LED Lamp, 4.3 W Fixture, 120277 VAC, White Housing, EXIT Legend
MPN LHQM LED R HO M6
ASPN LITHLHQMLEDRHOM6
UPC 745976254322
Description
Features
- The Quantum LHQM emergency light and exit combination unit from Lithonia Lighting with improved aesthetics and performance, is easy to install and maintain
- The advanced optical design and electronic technology deliver high-quality light output when it is needed most
- INSTALLATION- Easily replaces existing emergency combination units and has top, back or end mounting capability
- DIMMING- Not applicable
- VOLTAGE- Functions between 120 or 277 V with input wattage of 4.3 W
- LIFE- The typical life of the LED lamp is 10 years using one 1.5 W LED per lamp head
- DESIGN- Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant and corrosionproof, UV-stable resin resists discoloration from natural and man-made light sources
- BATTERY- Emergency combo provided with test switch, status indicator and rechargeable battery with maintenance-free nickel-cadmium battery provides 90 min of emergency power
Specifications
GTIN: 00745976254322
UNSPSC: 39111707
Country of Origin: United States of America (the)
| Type | Stencil Face |
|---|---|
| Legend Color | Red |
| Power Source | Ni-Cd Battery |
| Number of Lamps | 2 |
| Number of Heads | 2 |
| Voltage Rating | 120/277 VAC |
| Weight | 225 lbs |
| Legend | EXIT |
| Dimensions | 8 in H x 19-1/4 in W x 4-3/4 in D |
| Average Life | 10 years |
| Lamp Type | LED |
| Fixture Wattage | 4.3 W |
| Housing Material | Thermoplastic |
| Mounting Type | Surface |
| Legend Size | 6 in H |
| Lamp Wattage | 1.5 W |
| Housing Finish | White |
| Series | LHQM |
| Amperage Rating | 0.03/0.05 A |
| Volume | 1.4 CF |
| BABA Compliant | No |
| Sold as | EACH |
