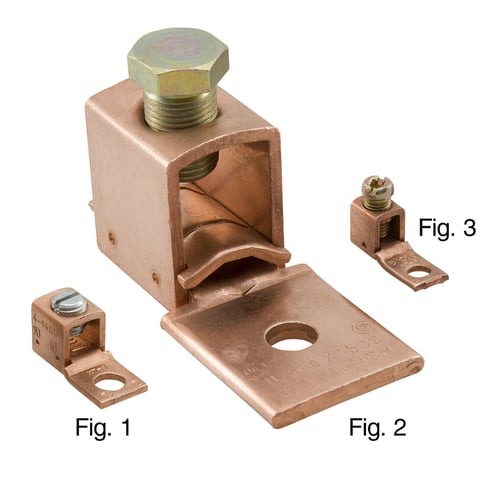

ILSCO ClearChoice XT-10 Mechanical Lug, 14 to 10 AWG Copper Conductor, 1/8 in Stud, 1 Bolt Hole, Copper
ILSCO ClearChoice XT-10 Mechanical Lug, 14 to 10 AWG Copper Conductor, 1/8 in Stud, 1 Bolt Hole, Copper
MPN XT-10
ASPN ILSCXT10
UPC 783669958195
Description
Features
- Manufactured from electrolytic copper tubing and strip stock
- Compact design
- Range taking for reduced inventories and flexibility
- Re-usable
- Saves space and reduces installation time
- Contact factory for listed wire combinations
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- A - UL listed combinations (2) 14 AWG stranded or (2) AWG 12 stranded or (2) AWG 10 stranded or (2) 8 AWG stranded and (4) 16 AWG stranded conductor size
- B - UL listed combinations (2) 6 AWG stranded and (2) 8 AWG stranded conductor size
Specifications
| Tongue Type | Straight |
|---|---|
| Conductor Type | Copper |
| Voltage Rating | 2000 VAC |
| Specifications | Slotted Hex |
| Stud Size | 1/8 in |
| Conductor Size | 14 to 10 AWG |
| Tongue Size | 0.5313 in L |
| Dimensions | 7/8 in L x 5/16 in W |
| Series | XT Series |
| Material | Copper |
| Finish | Electrolytic |
| Temperature Rating | 90 deg C |
| Number of Bolt Holes | 1 |
| BABA Compliant | No |
| Sold as |
