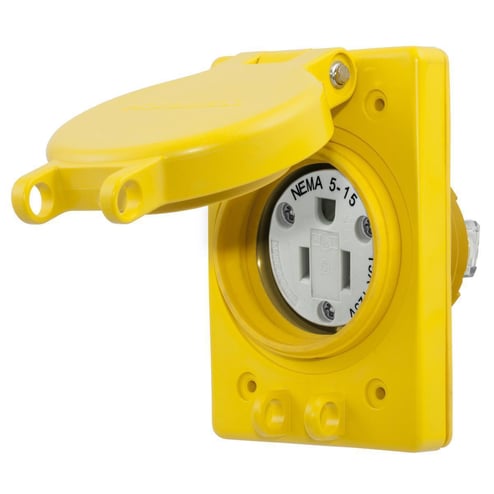

Wiring Device-Kellems HBL60W47 1-Phase Grounding Standard Watertight Screw Mount Straight Blade Receptacle With Lift Cover, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Wiring Device-Kellems HBL60W47 1-Phase Grounding Standard Watertight Screw Mount Straight Blade Receptacle With Lift Cover, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
MPN HBL60W47
ASPN HUBHBL60W47
UPC 783585456577
Description
Specifications
GTIN: 00783585456577
UNSPSC: 39121406
Alternative Part Number: 39AW60
Country of Origin: China
| Terminal Type | Screw |
|---|---|
| Number of Poles | 2 |
| Color | Yellow |
| Grade | Commercial/Industrial |
| Temperature Rating | -40 to 60 deg C |
| BABA Compliant | No |
| Horsepower | 1/2 hp |
| Amperage Rating | 15 A |
| Material | Elastomer/Composite |
| Dimensions | 3.1 in W x 4.56 in H |
| NEMA Rating | 5-15R |
| Weight | 9.3 lbs |
| Voltage Rating | 125 VAC |
| Enclosure | NEMA 4/4X/6/6P/12 |
| Number of Wires | 3 |
| Type | 1-Phase Grounding Standard Watertight Screw Mount |
| Sold as | EACH |
