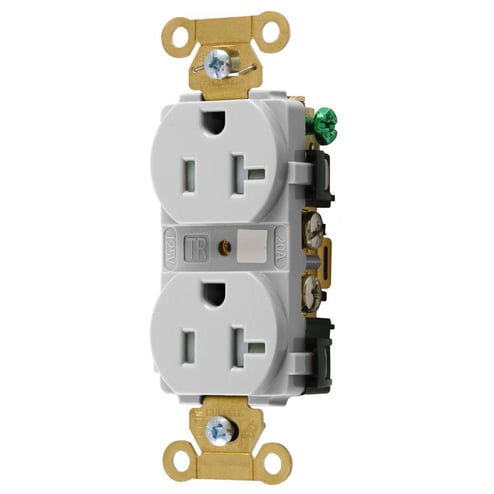

Wiring Device-Kellems HBL5362WTR Duplex Extra Heavy Duty Grounding Standard Tamper-Resistant Traditional Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White


Description

Wiring Device-Kellems Straight Blade Receptacle, Duplex Extra Heavy Duty Grounding Standard Tamper-Resistant Traditional, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Industrial Grade, -40 to 75 deg C, Screw Terminal, Nylon, White, 3.28 in H x 1.32 in W x 0.83 in D Dimensions

The Hubbell® tamper resistant mechanism eliminates the frustration and difficulty experienced using TR receptacles with plugs that have sharp or bent blades. Hubbell® TR receptacles work so well there is virtually no perceptible difference in the feel between these TR receptacles and our conventional non-TR duplexes. Trust Hubbell® to deliver tamper resistant protection that feels like it's not even there.

Features

  • Patented TR design eliminates plug-in difficulty and TR complaints
  • Brass mounting strap and Triple Wipe contacts
  • High impact resistant face with circuit I.D. marking area

Specifications

GTIN: 00783585542546

UNSPSC: 39121406

Country of Origin: United States of America (the)

Terminal Type
Screw
Number of Wires
3
Number of Poles
2
Color
White
Voltage Rating
125 VAC
Weight
0.1 lbs
NEMA Rating
5-20R
Dimensions
1.32 in W x 0.83 in D x 3.28 in H
Material
Composite
Amperage Rating
20 A
Volume
51.8 CF
Temperature Rating
-40 to 75 deg C
Horsepower
1 hp
BABA Compliant
No
Grade
Commercial/Industrial
Type
1-Phase Duplex Extra Heavy Duty Grounding Standard Tamper-Resistant Traditional Screw Mount
Sold as
EACH
