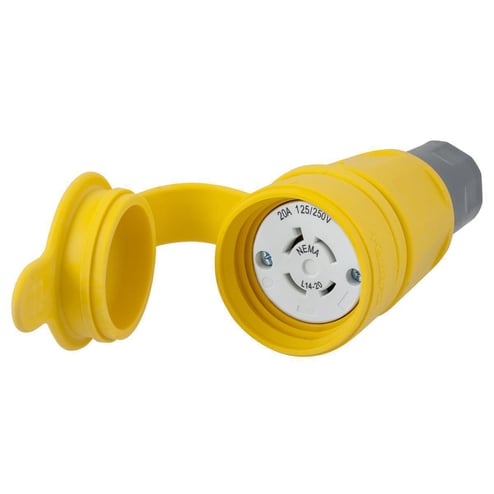

Wiring Device-Kellems Twist-Lock Elastogrip HBL27W74 Standard Sized Water/Dust-Tight Grounding Locking Connector, 125/250 VAC, 20 A, 3 Poles, 4 Wires, Yellow
Wiring Device-Kellems Twist-Lock Elastogrip HBL27W74 Standard Sized Water/Dust-Tight Grounding Locking Connector, 125/250 VAC, 20 A, 3 Poles, 4 Wires, Yellow
MPN HBL27W74
ASPN HUBHBL27W74
UPC 783585131795
Description
Features
- Smooth body design minimizes collection points simplifying the wash down process
- Strain relief nut always seals on the body, minimizing debris collection
- Stainless steel hardware and corrosion-resistant connection points
Specifications
GTIN: 00783585131795
UNSPSC: 39121421
Country of Origin: China
| Type | Standard Sized Water/Dust-Tight Grounding Cord Mount Watertight |
|---|---|
| Terminal Type | Screw |
| Cord Diameter | 3/8 to 7/8 in |
| Number of Wires | 4 |
| Number of Poles | 3 |
| Color | Yellow |
| Enclosure | NEMA 4/4X/6/6P/12 |
| Grade | Commercial/Industrial |
| Voltage Rating | 125/250 VAC |
| Weight | 45 lbs |
| NEMA Rating | L14-20R/WD1/WD6 |
| Dimensions | 2.51 x 2.51 x 5.69 in |
| Material | Elastomer/Composite |
| Amperage Rating | 20 A |
| Volume | 0 |
| Temperature Rating | -40 to 75 deg C |
| Horsepower | 2 hp |
| BABA Compliant | No |
| Sold as | EACH |
