Hubbell® Twist-Lock® HBL2440 Flush Mount Standard Single Locking Receptacle, 120/208 VAC, 20 A, 4 Poles, 4 Wires, Black
Hubbell® Twist-Lock® HBL2440 Flush Mount Standard Single Locking Receptacle, 120/208 VAC, 20 A, 4 Poles, 4 Wires, Black
MPN HBL2440
ASPN HUBHBL2440
UPC 783585235790
Description
Features
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- 4-wire non-grounding
- Stainless steel auto ground clip
- 0.04 in brass back plate
- Black nylon top cover
- 0.05 in brass bridge mounting strap
- Brass rivet
- Nylon polyester base
- 0.031 in brass ground contact
- Zinc plated steel mounting screws
- 3-phase, star connection 120/208 VAC
- 20 A 12 AWG terminal accommodation
- 2000 VAC minimum dielectric voltage withstand
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
- Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification
- V2 or better per UL94/CSA 22.2 No 0.17 flammability
- -40 to 75 deg C maximum continuous (without impact) operating temperature
Specifications
UNSPSC: 39121406
Alternative Part Number: 3D053
| Terminal Type | Screw |
|---|---|
| Number of Wires | 4 |
| Number of Poles | 4 |
| Color | Black |
| Enclosure | IP20 |
| Amperage Rating | 20 A |
| Volume | 53.6 CF |
| Horsepower | 2 hp |
| BABA Compliant | No |
| Temperature Rating | -40 to 75 deg C |

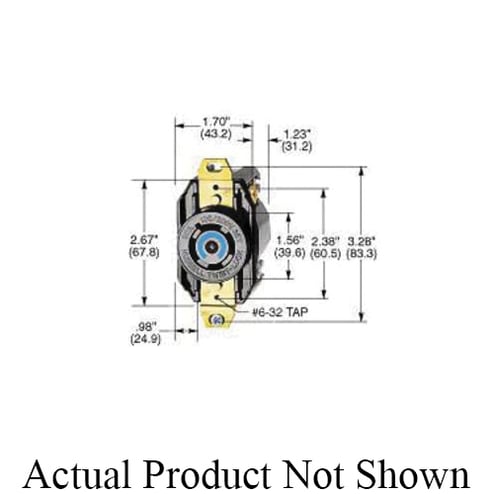

| Dimensions | 1.234 in W |
| NEMA Rating | NEMA L18-20R |
| Weight | 28.2 lbs |
| Voltage Rating | 120/208 VAC |
| Type | Flush Mount Standard Single |
| Sold as |
