Description

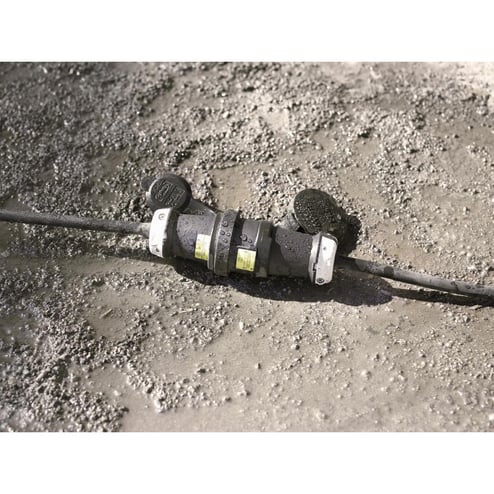

Wiring Device-Kellems Twist-Lock Safety-Shroud Locking Plug, Grounding Watertight, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA L5-20P, Grade: Industrial, NEMA 4/4X/12/IP66 Enclosure, 0.36 to 0.93 in Cord Dia, -40 to 75 deg C, Screw Terminal, PBT, Black/White, 2.77 in Dia x 4.4 in L
Features
- Impact resistant shroud protects blades against bending and breaking
- Reduces exposure to arcing when connecting or disconnecting under load
- Superior cord grip design protects terminations from excess strain
Specifications
GTIN: 00783585231020
UNSPSC: 39121400
Country of Origin: United States of America (the)
| Terminal Type | Screw |
|---|---|
| Number of Wires | 3 |
| Number of Poles | 2 |
| Color | Black/White |
| Enclosure | NEMA 4/4X/12/IP66 |
| Grade | Industrial |
| Voltage Rating | 125 VAC |
| Dimensions | 2.77 x 2.77 x 4.4 in |
| Series | HBL® |
| Material | Composite |
| Amperage Rating | 20 A |
| Volume | 71663.6 cubic inches |
| Temperature Rating | -40 to 75 deg C |
| Horsepower | 1 hp |
| BABA Compliant | No |
| NEMA Rating | L5-20P |
| Weight | 86.9 lbs |
| Cord Diameter | 0.36 to 0.93 in |
| Type | 1-Phase Grounding Watertight Cord Mount |
| Sold as | EACH |
