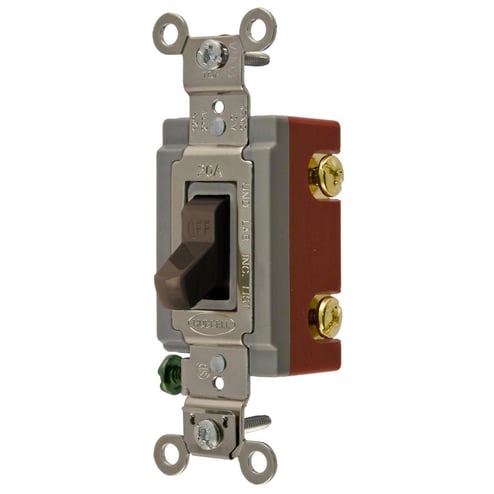

Wiring Device-Kellems HBL HBL1222 4-Way Extra Heavy Duty General Purpose Standard Toggle Switch, 120 to 277 VAC, 20 A, 5540 W Power Rating, 2-Position Contact
Wiring Device-Kellems HBL HBL1222 4-Way Extra Heavy Duty General Purpose Standard Toggle Switch, 120 to 277 VAC, 20 A, 5540 W Power Rating, 2-Position Contact
MPN HBL1222
ASPN HUBHBL1222
UPC 783585431604
Description
Features
- Large brass binding head screws with deep slots
- Abuse resistant nylon toggle
- Strip gauge for accurate wiring
Specifications
GTIN: 00783585431604
UNSPSC: 39122211
Country of Origin: China
| Number of Poles | 2 |
|---|---|
| Color | Brown |
| Voltage Rating | 120 to 277 VAC |
| Weight | 38 lbs |
| Dimensions | 4.06 x 1.31 x 1.87 in |
| Actuator | Toggle |
| Material | Thermoset |
| Amperage Rating | 20 A |
| Contact Configuration | 2-Position |
| Environmental Conditions | -40 to 75 deg C |
| Power Rating | 5540 W |
| Operating Cycles | 50000 cycles |
| Mounting | Threaded |
| BABA Compliant | No |
| Volume | 53.6 cubic inches |
| Terminal Type | Back/Side Wire |
| Type | 4-Way Extra Heavy Duty General Purpose Standard |
| Sold as | EACH |
