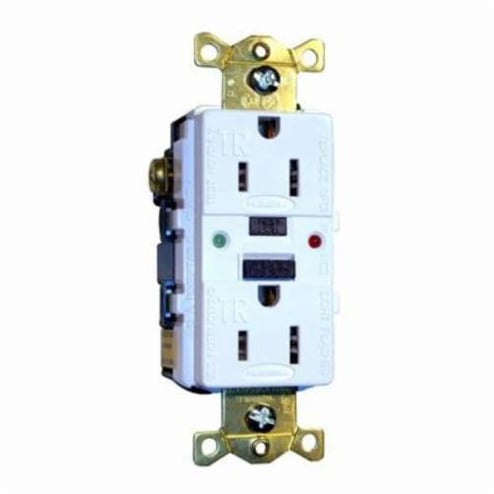

Hubbell® GFTR20W Commercial Heavy Duty Tamper-Resistant GFCI Receptacle With LED Light, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Hubbell® GFTR20W Commercial Heavy Duty Tamper-Resistant GFCI Receptacle With LED Light, 125 VAC, 20 A, 2 Poles, 3 Wires, White
MPN GFTR20W
ASPN HUBGFTR20W
UPC 883778114755
Description
Features
- 4 to 6 mA trip level
- 0.025 sec trip time
- 0.95 max humidity
- 14 to 10 AWG stranded or solid copper conductors only terminal accommodations
- GFCI receptacles should not be used in critical care patient areas or for electrical life support equipment
- Standard size tamperproof receptacle
- Thermoplastic or composite material
Specifications
UNSPSC: 39121406
Country of Origin: China
| Type | Heavy Duty Tamper-Resistant |
|---|---|
| Terminal Type | Back/Side Wire |
| Number of Wires | 3 |
| Number of Poles | 2 |
| Color | White |
| Frequency Rating | 60 Hz |
| Grade | Commercial |
| Voltage Rating | 125 VAC |
| NEMA Rating | NEMA 5-20R |
| Series | Commercial |
| Material | Thermoplastic |
| Amperage Rating | 20 A |
| Temperature Rating | -30 to 66 deg C |
| Horsepower | 1/2 hp |
| BABA Compliant | No |
| Sold as |
