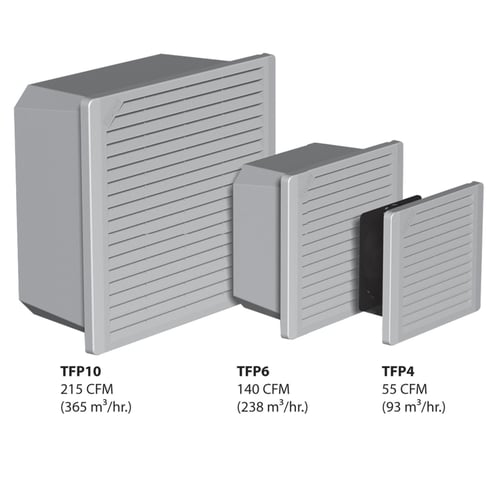

Hoffman TFP42UL12 D85 TFP Filter Fan, 230 VAC, 0.110.14 A, 1614 W Power Rating, 4555 cfm Air Flow, NEMA 12 Enclosure


Description

Hoffman Filter Fan, TFP, Series: D85, 230 VAC, 0.11/0.14 A, 16/14 W, 37/41 dBA, 45/55 cfm, Side Mount, Split Capacitor Motor, 4 in Grille, ABS Grille, NEMA 12, Polycarbonate Housing, 6.29 in H x 7.37 in W x 2.65 in D

Hoffman products are developed in world class test facilities, based on 70 years of enclosures experience and 30 years of cooling experience. They're rigorously tested for dust infiltration, thermal cycling, salt fog corrosion, vibration resistance and many other standards to ensure they perform.

Features

  • Cooling fan package includes fan, air filter, composite air plenum, finger guard and grille
  • EMC upgrade kit includes a grille standoff collar and a special EMC shielding grille
  • Washable foam (Type 1) or disposable (Type 12) filter in fan
  • Dynamically balanced fan impellers molded from polycarbonate material
  • 4 in fan is thermally protected and uses permanently lubricated ball bearings
  • Fans have lead wires for power connection with ends stripped 1/2 in (12 mm)
  • All mounting hardware and installation instructions are furnished
  • Engineered for 50000 hr of continuous operation without lubrication or service (a monthly maintenance schedule is recommended to ensure optimal cooling performance)
  • TFP side-mount fans provide reliable cooling for enclosures with limited space requiring simple filtered airflow for basic cooling
  • 24 VDC, 115 VAC and 230 VAC options available

Specifications

GTIN: 00783510426590

UNSPSC: 40101604

Alternative Part Number: 42659

Country of Origin: China

Type
TFP
Weight
8 lbs
Enclosure Type
NEMA 12
Housing Material
Polycarbonate
Air Flow Rate
45/55 cfm
Series
D85
BABA Compliant
No
Power Rating
16/14 W
Grille Size
4 in
Volume
57 CF
Motor Type
Split Capacitor
Amperage Rating
0.11/0.14 A
Mounting Type
Side
Dimensions
6.29 in H x 7.37 in W x 2.65 in D
Grille Material
ABS
Voltage Rating
230 VAC
Sound Level
37/41 dBA
Sold as
EACH
