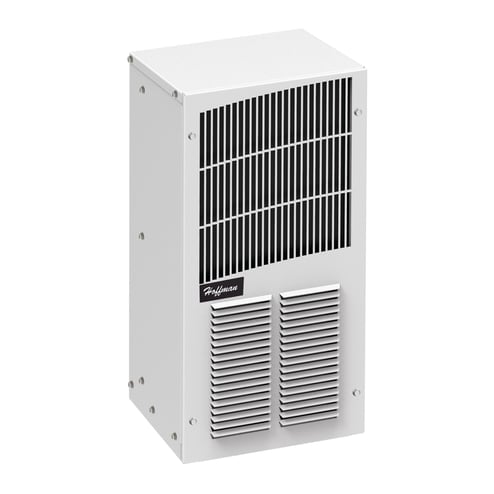

nVent HOFFMAN T200216G100 MCL 1-Phase Compact Outdoor Sealed Enclosure Air Conditioner, 115 VAC, 7 A, 5060 Hz, NEMA 3R412 Enclosure, 2000 Btuhr
nVent HOFFMAN T200216G100 MCL 1-Phase Compact Outdoor Sealed Enclosure Air Conditioner, 115 VAC, 7 A, 5060 Hz, NEMA 3R412 Enclosure, 2000 Btuhr
MPN T200216G100
ASPN HOFFT200216G100
UPC 783510162948
Description
Features
- Stock models equipped with head pressure control for low ambient operation, compressor heater, coated condenser coil, malfunction switch, thermostat and heater package
- R134A earth friendly refrigerant
- Exterior and fully recessed mounting options on many models
- Compact footprint to minimize real estate and maximize capacity
- Reliable mechanical thermostat on enclosure side of the unit, indoor air conditioner
- Easy mount flanges for simple installation
- Dual condenser side air movers for performance redundancy
- Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
- Every unit functionally tested before shipping
- Without heat package
- Models for 115, 230 and 460 VAC power input
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C
- UL Listed to save customers time and money with agency approvals (some models UL recognized)
- Painted galvanized or stainless steel sheet-metal cover for rugged factory and outdoor environments
Specifications
GTIN: 00783510162948
UNSPSC: 40101701
Alternative Part Number: 16294
Country of Origin: United States of America (the)
| Control Type | Mechanical Thermostat |
|---|---|
| Color | Light Gray |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 115 VAC |
| Weight | 0.5 lbs |
| Enclosure Type | NEMA 3R/4/12 |
| Dimensions | 20 in H x 10 in W x 9.9 in D |
| Mounting Type | Side |
| Capacity Range | 2000 Btu/hr |
| Series | MCL |
| Connection Type | Plug |
| Material | Sheet Metal |
| Amperage Rating | 7 A |
| Power Rating | 586 W |
| Temperature Rating | -40 to 131 deg F |
| BABA Compliant | No |
| Type | 1-Phase Compact Outdoor |
| Sold as | EACH |
